CDD-562AL/564A/L Multi-Channel Demodulator Revision 0
IP Module Ethernet Interface MN-CDD562AL564AL
4–11
4.4.1.2 Router Working Mode – Point-to-Multipoint

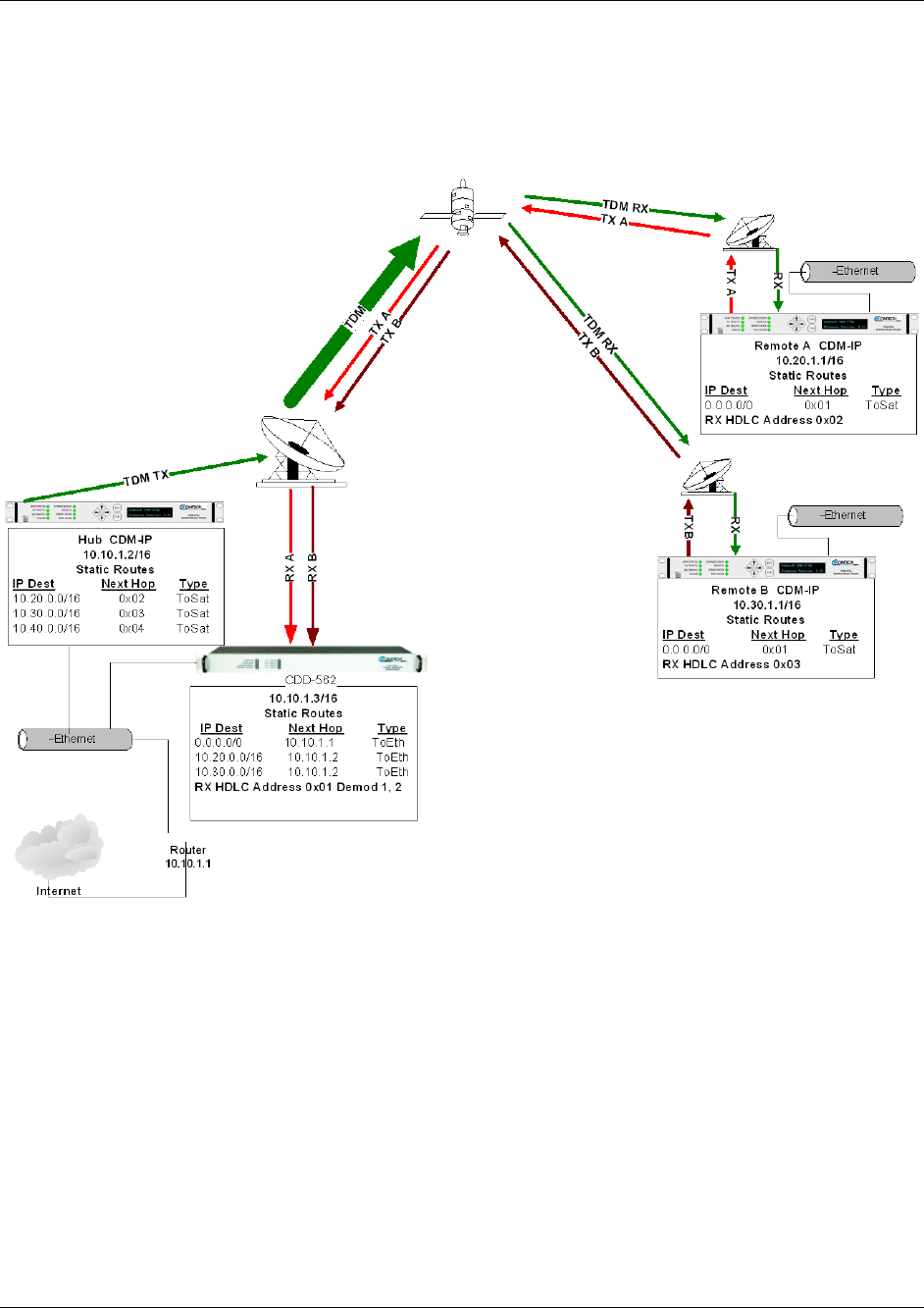

Figure 4-3 shows a “Star Network” Point-to-Multipoint Configuration, where the Hub CDM-IP modem is
transmitting a common TDM carrier to two remote sites with CDM-IP modems. In turn, the Remote
CDM-IP is transmitting a link back to the Hub that is received by the CDD-562L L-Band Satellite Dual
Demodulator. (TX C is shown, but is not required.)
Figure 4-3. (CDD-562L) Point-to-Multipoint Router Working Mode Diagram
