CDD-562AL/564A/L Multi-Channel Demodulator Revision 0
HTTP (Web Server) Interface MN-CDD562AL564AL
10–21

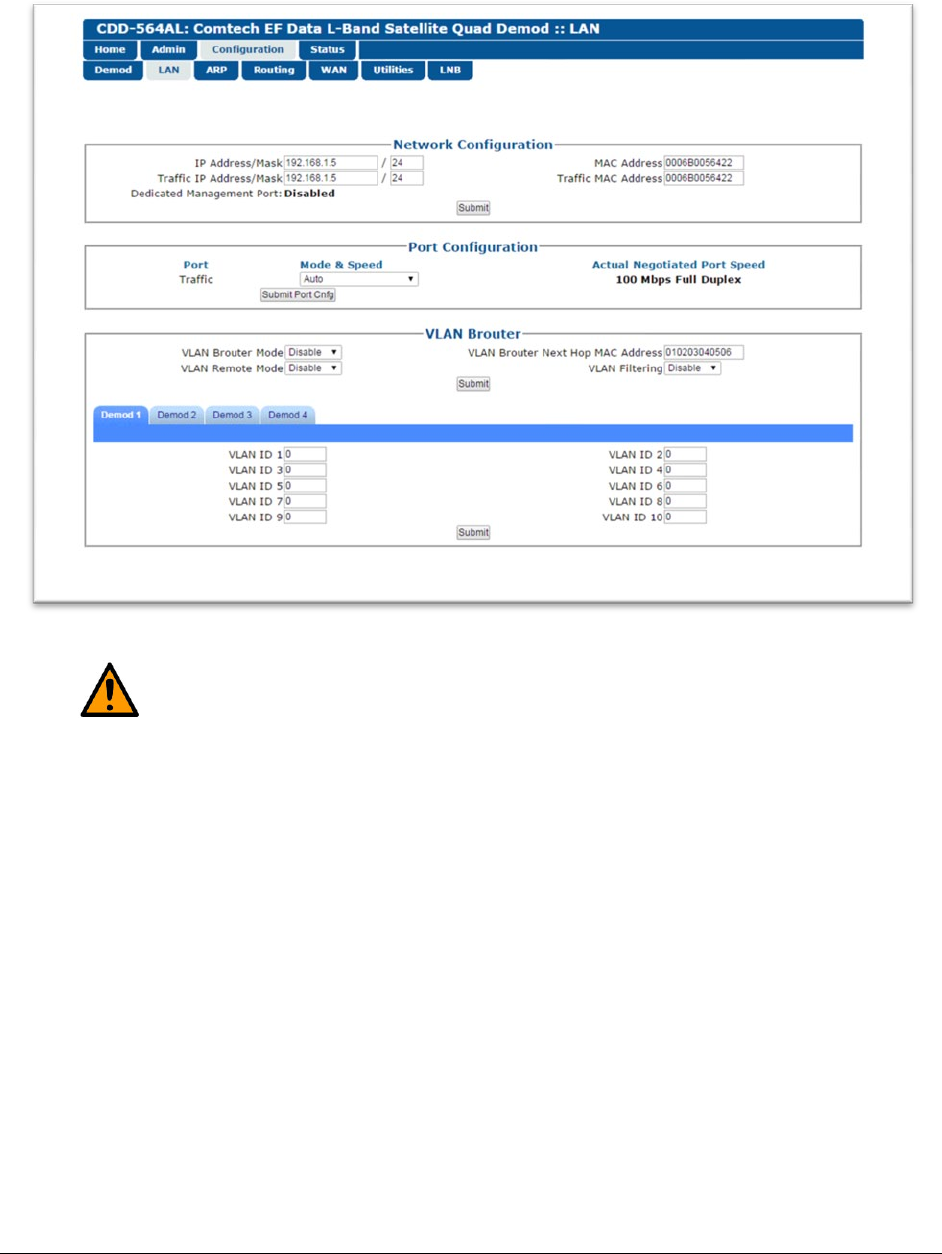

10.5.2 Configuration | LAN
Use this page to set LAN configuration parameters.
CAUTION
If you do not save these parameter changes to permanent storage, they will be lost
when the unit is reset or loses power. To save these changes to permanent storage,
go to the
Admin | Save
page and click
Save PaP Parameters
.
Network Configuration
IP Address/Mask
Enter the IP Address/Mask for Ethernet Interface.
Traffic IP Address/Mask
Enter the IP Address/Mask for the Traffic Ethernet Port; only applicable when Dedicated Management
Port is enabled.
Dedicated Management Port
Read-only; shows the status of the Dedicated Management Port.
