CDD-562AL/564A/L Multi-Channel Demodulator Revision 0
Introduction MN-CDD562AL/564AL
1–9
1.3.5 Physical Features
1.3.5.1 Front Panel
CDD-564AL
CDD-564A
CDD-562AL

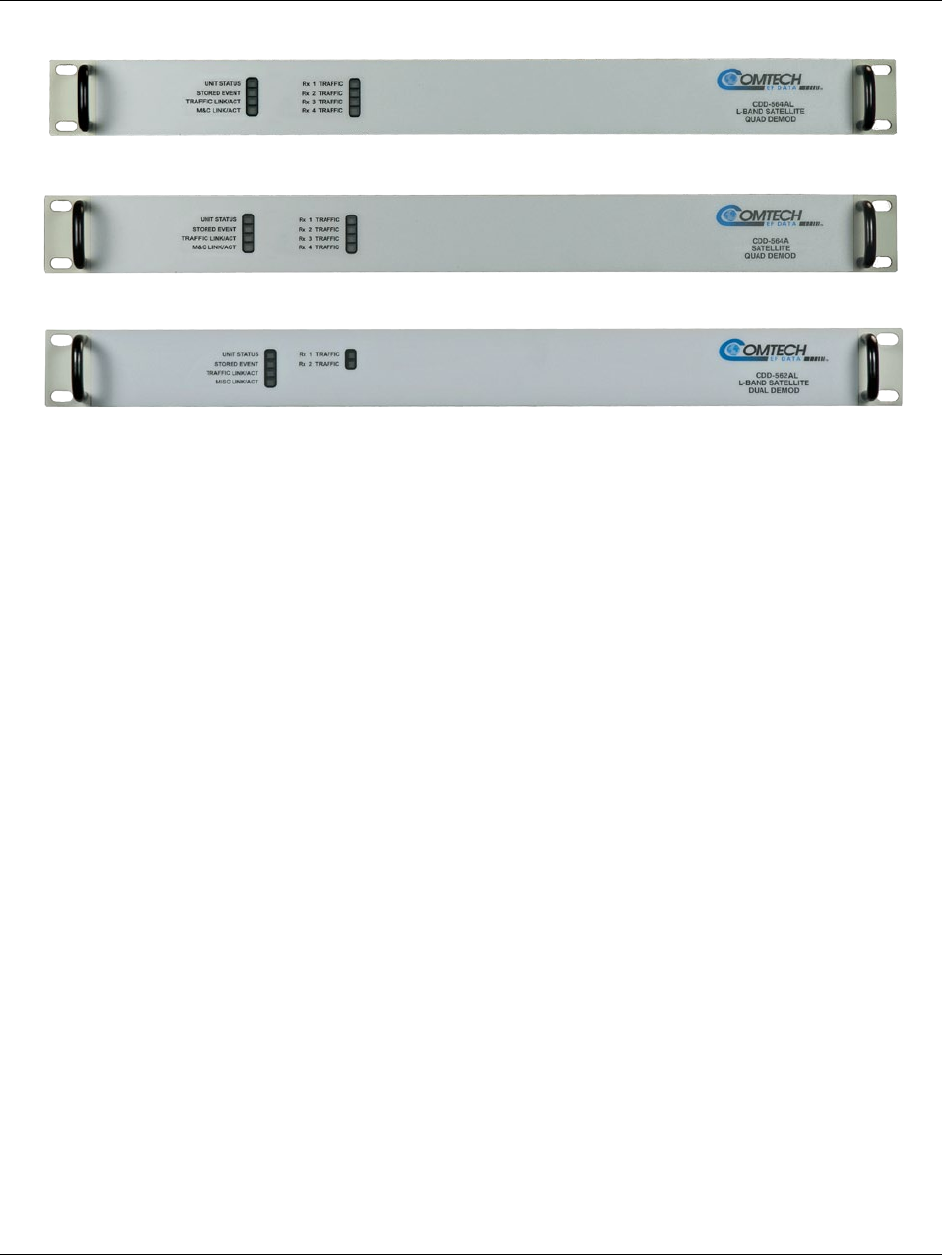

Figure 1-8. Front Panel Views
Figure 1-8 shows the front panel of the demodulators. Depending on the unit, the front panel has six
(CDD-562AL) or eight (CDD-564A/L) Light-Emitting-Diode (LED) indicators.
The LEDs indicate the status of the unit:
• Overall Unit Status
• Stored Event
• Traffic Ethernet Link Activity
• M&C Link Ethernet Activity for the dedicated management port
• Traffic Status for each of the two (CDD-562AL) or four (CDD-564A/L) Rx Traffic (receive)
channels
