CDD-562AL/564A/L Multi-Channel Demodulator Revision 0
HTTP (Web Server) Interface MN-CDD562AL564AL
10–23
When finished, click Submit to save and activate these changes.
VLAN ID 1 through VLAN ID 10
For a selected demodulator, enter a valid ID in the range of 0000 to 4095 into the applicable VLAN ID
text boxes.
When finished, click Submit to save and activate these changes.

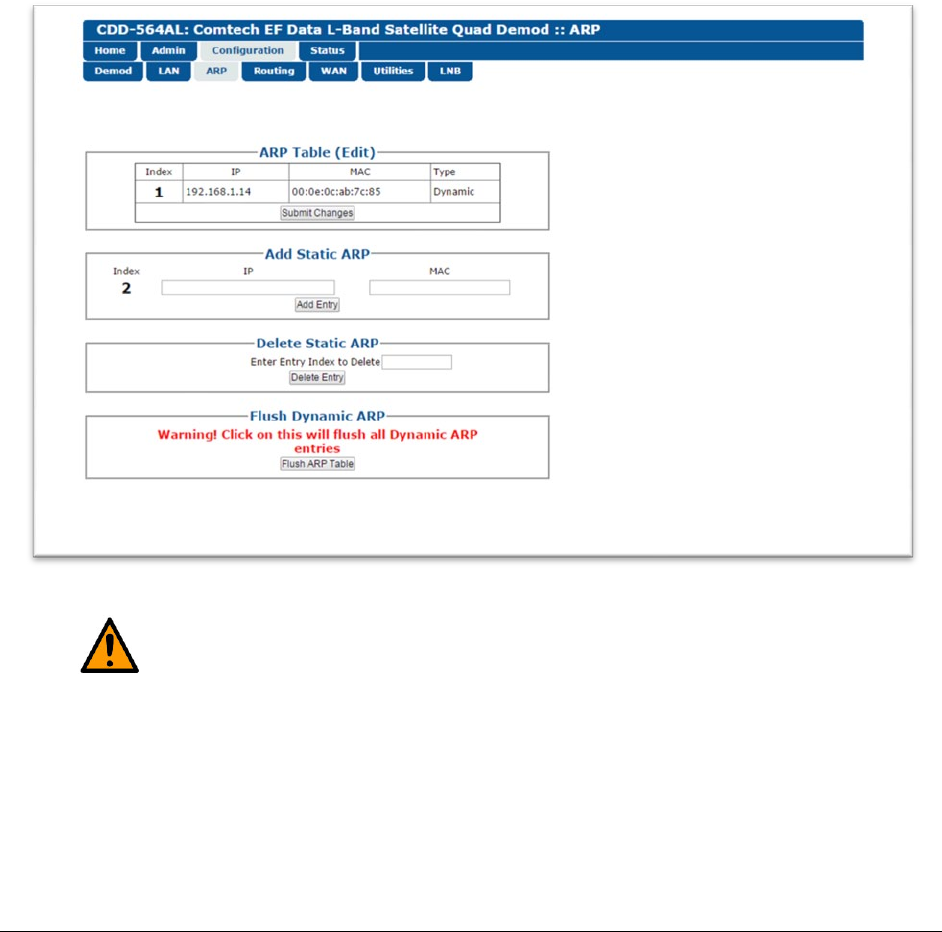

10.5.3 Configuration | ARP
Use this page to see or edit the unit’s ARP parameters.
CAUTION
If you do not save these parameter changes to permanent storage, they will be lost
when the unit is reset or loses power. To save these changes to permanent storage,
go to the
Admin | Save
page and click
Save PaP Parameters
.
