CDD-562AL/564A/L Multi-Channel Demodulator Revision 0
Rear Panel Connections MN-CDD562AL564AL
3–9
3.3.3 48V Direct Current (DC) Power Interface (Optional)
1 Plug-in Power Receptacle

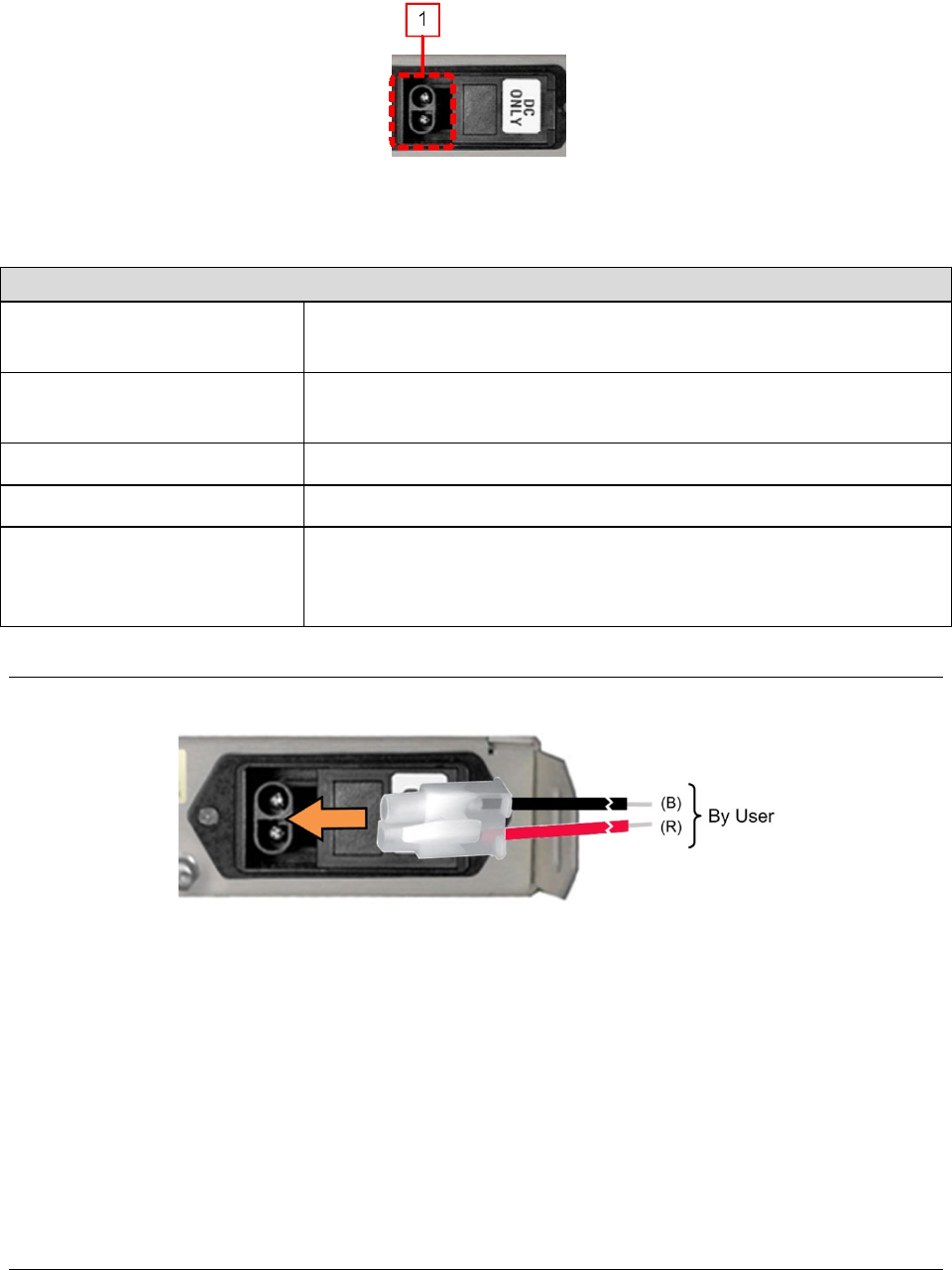

Figure 3-5. CDD-56xA/L DC Power Interface
DC Power Specifications
Input Power 48 W (typical)
106 W (maximum)
Input Voltage 48 V DC nominal
(36 V to 60 V)
Connector Type Corcom PS series
Mating Connector Corcom GA210 or Molex 03-12-1026
Fuse Protection Line and Neutral Fusing
(2X) 5mm x 20mm Slow-blow type fuses:
T4A (4 Amp)
3.3.3.1 DC Operation – Applying Power
Figure 3-6. Applying DC Power to the CDD-56xA/L
To apply DC power to the CDD-56xA/L:
1. Assemble the user-supplied red (+) and black (–) DC power leads and their crimped terminals
into the shell of the module mating connector.
a. Number 18 AWG minimum wires are recommended.
b. Note the keyed orientation for the wires.
2. Connect the user-supplied DC power leads to the power source.
3. Plug the connector into the keyed module socket as shown.
