CDD-562AL/564A/L Multi-Channel Demodulator Revision 0
Telnet and CLI Operation MN-CDD562AL564AL
9–38

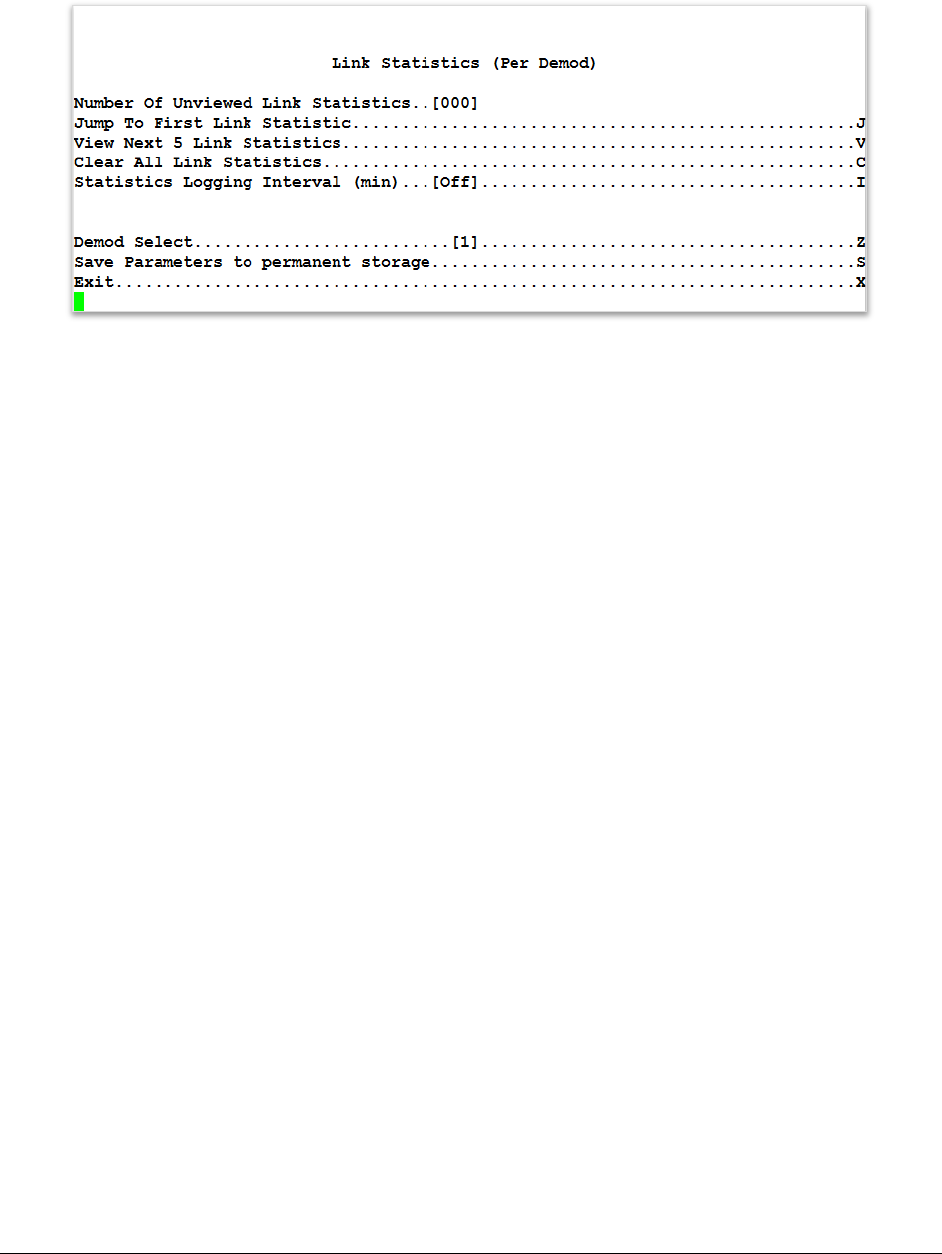

9.2.2.6.2.3 Link Statistics (Per Demod) screen
Go to the Link Statistics (Per Demod) screen from the Monitor screen.
Number of Unviewed Link Statistics, keystroke: none, read-only
• Shows the number of statistics not yet seen.
• Shows five statistics at a time. Once seen, the total changes accordingly.
Jump to First Link Statistics, keystroke: J
• Resets the internal Statistics Index to 1; so you can go back to see the statistics again.
View Next 5 Link Statistics, keystroke: V
• Shows the next five statistics, starting from the internal Statistics index.
Clear All Link Statistics, keystroke: C
• Deletes all Link Statistics from the NVRAM buffer.
Statistics Logging Interval (min), keystroke: I
• Sets the period of time for which the statistics are measured. Choose from 10 to 90 minutes in 10-
minute steps. Choose OFF to disable the feature.
