CDD-562AL/564A/L Multi-Channel Demodulator Revision 0
HTTP (Web Server) Interface MN-CDD562AL564AL
10–9
10.4.2 Admin | SNMP
The Admin | SNMP page is available for the Administrator login only.
Use this page to set administration parameters for the Simple Network Management Protocol (SNMP).

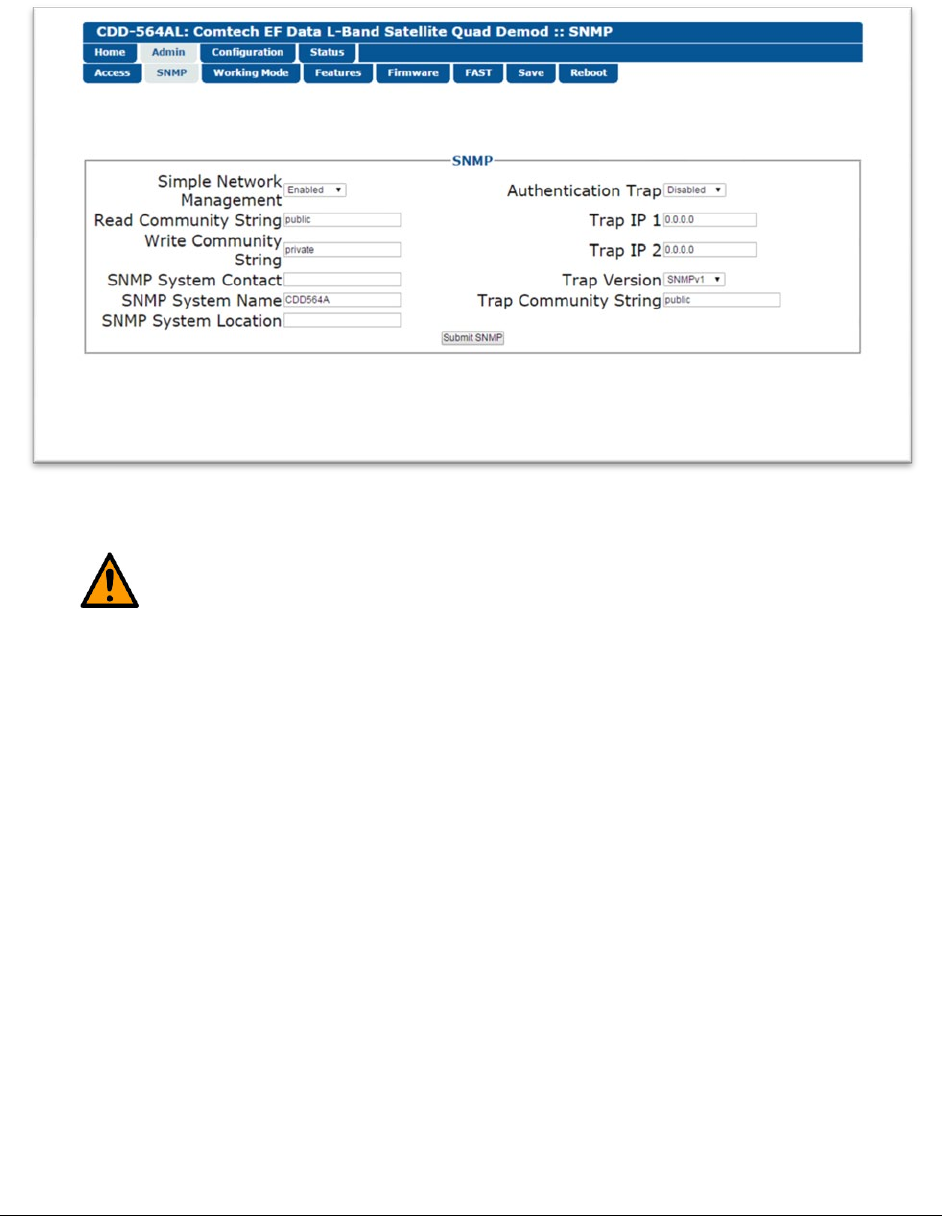

Figure 10-4. Admin | SNMP page
CAUTION
If you do not save these parameter changes to permanent storage, they will be lost
when the unit is reset or loses power. To save these changes to permanent storage,
go to the
Admin | Save
page and click
Save PaP Parameters
.
S NMP
Simple Network Management
Click Enabled or Disabled.
Read, Write, Trap Community Strings
Each Community String can have a minimum of 0, to a maximum of 20, alphanumeric characters.
The factory defaults for these strings are:
