CDD-562AL/564A/L Multi-Channel Demodulator Revision 0
Telnet and CLI Operation MN-CDD562AL564AL
9–46

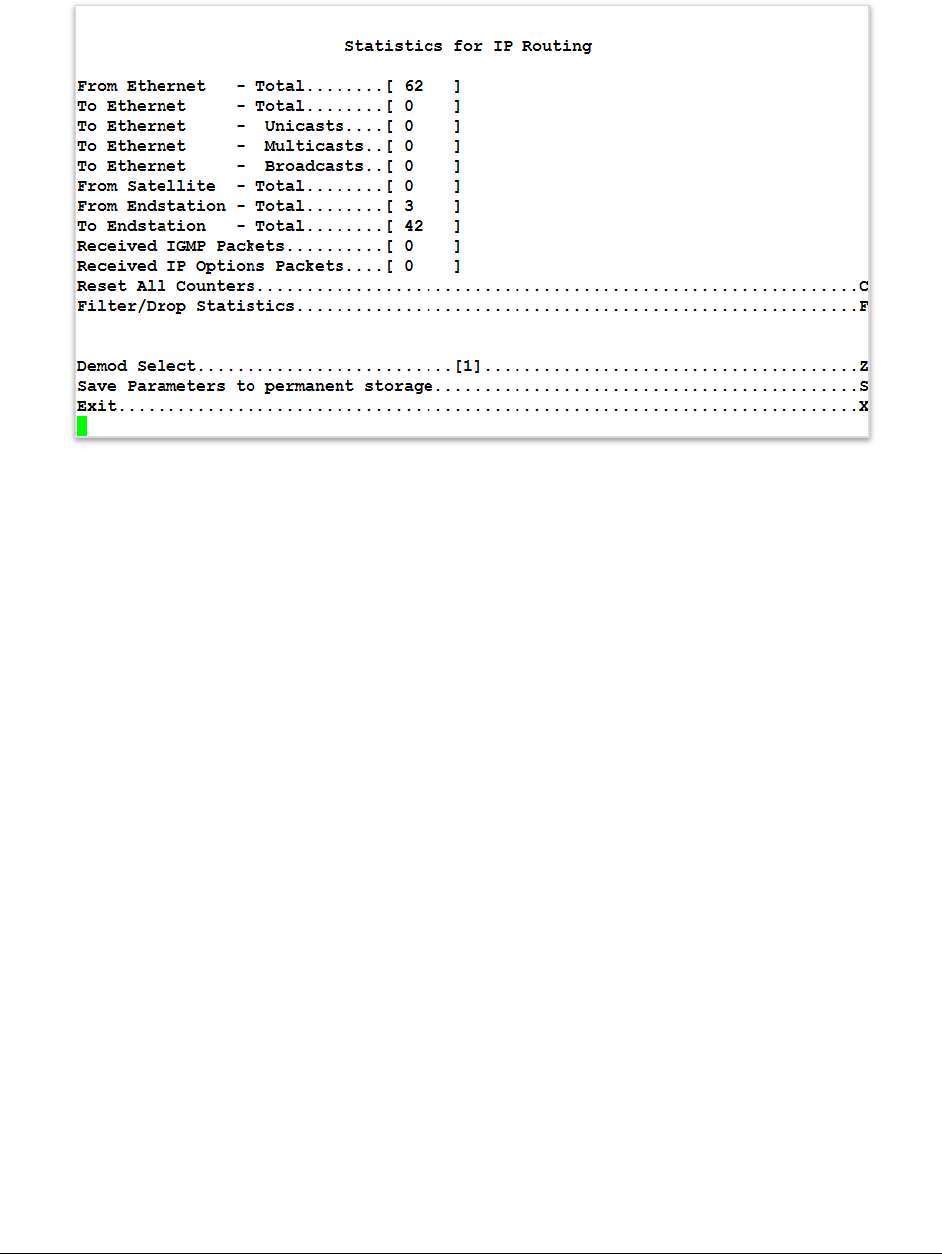

9.2.2.7.2.1 IP Statistics screen
Go to the IP Statistics screen from the Statistics Menu.
This screen shows the total numbers of packets routed or dropped in the IP Module.
From Ethernet – Total, keystroke: none, read-only
• Shows Ethernet Statistics, Rx Good Frames
To Ethernet - Total, keystroke: none, read-only
• Shows Ethernet Statistics, Tx Good Frames
To Ethernet – Unicasts, keystroke: none, read-only
• Shows Unicast packets to LAN
To Ethernet – Multicasts, keystroke: none, read-only
• Shows Multicast packets to LAN
To Ethernet – Broadcasts, keystroke: none, read-only
• Shows Broadcast packets to LAN
From Satellite – Total, keystroke: none, read-only
• Shows WAN Statistics, Rx HDLC Packet Count
From Endstation – Total, keystroke: none, read-only
• Shows Packets sent from demodulator
To Endstation – Total, keystroke: none, read-only
• Shows Packets directed to demodulator
Received IGMP Packets, keystroke: none, read-only
• Shows Internet Group Management Packets received (used for management of multicast traffic).
