CDD-562AL/564A/L Multi-Channel Demodulator Revision 0
Telnet and CLI Operation MN-CDD562AL564AL
9–26

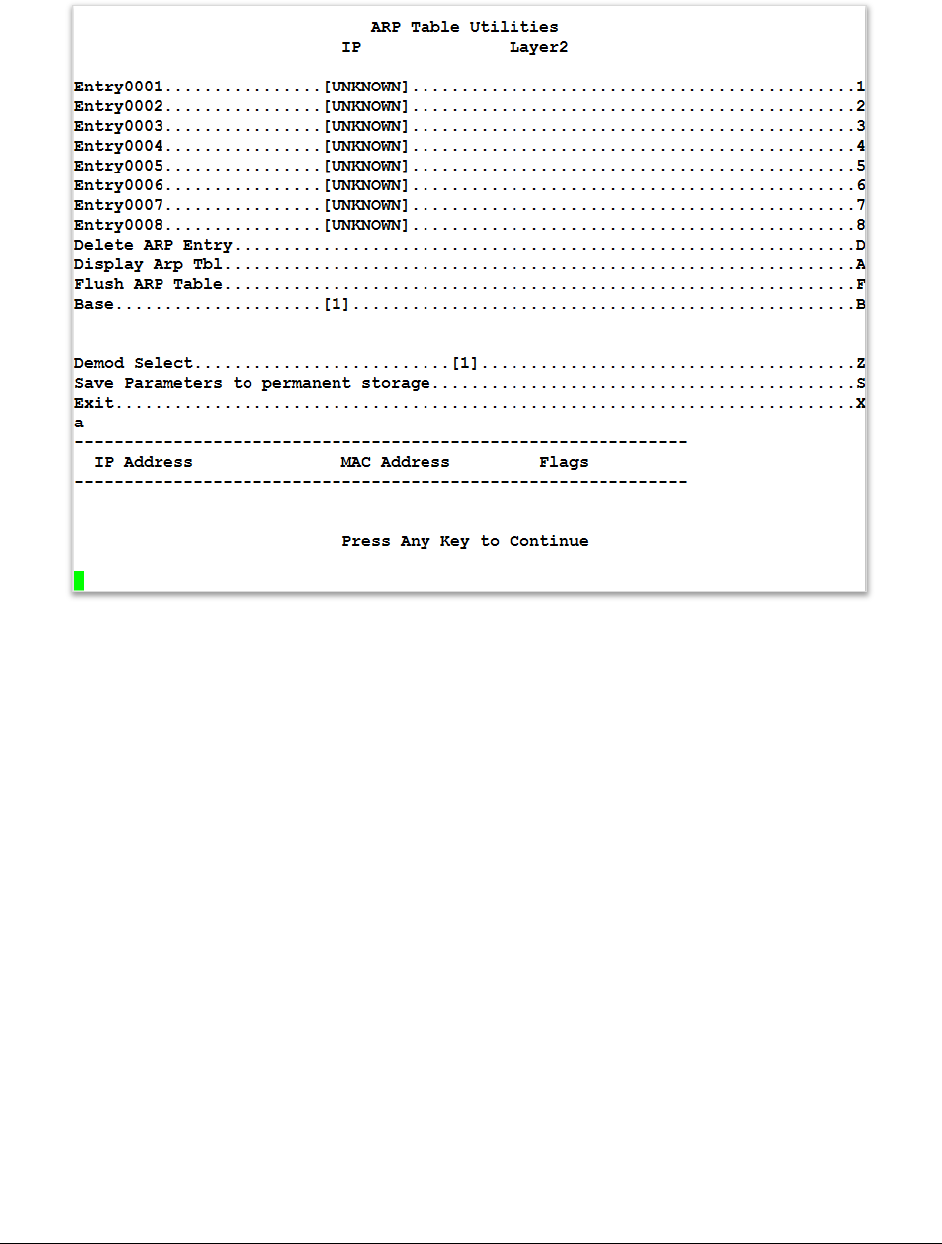

Display ARP Tbl, keystroke: A
• Shows the entire IP to MAC ARP table in blocks of 10 ARP entries. This includes both static and
dynamic ARP entries.
• Press the Enter key to see the next 10 entries, or press the ESC key to return to ARP Table
Utilities screen.
Flush ARP Table, keystroke: F
• Deletes all of the dynamic entries in the ARP table. This is equivalent to executing the standard
UNIX command “arp –d” on each address reported in an “arp –a” command.
• The command only deletes the dynamic ARP entries. The static ARP entries are not deleted.
Base, keystroke: B
• Use this to see up to 8 different Static ARP definitions per screen.
• To make it easier to edit a subset of the 256 possible entries, select a base address to control
which 8 ARP entries are shown.
o For example, to edit static ARP Entries 32-40, then set a Base value of 32.
