CDD-562AL/564A/L Multi-Channel Demodulator Revision 0
HTTP (Web Server) Interface MN-CDD562AL564AL
10–3

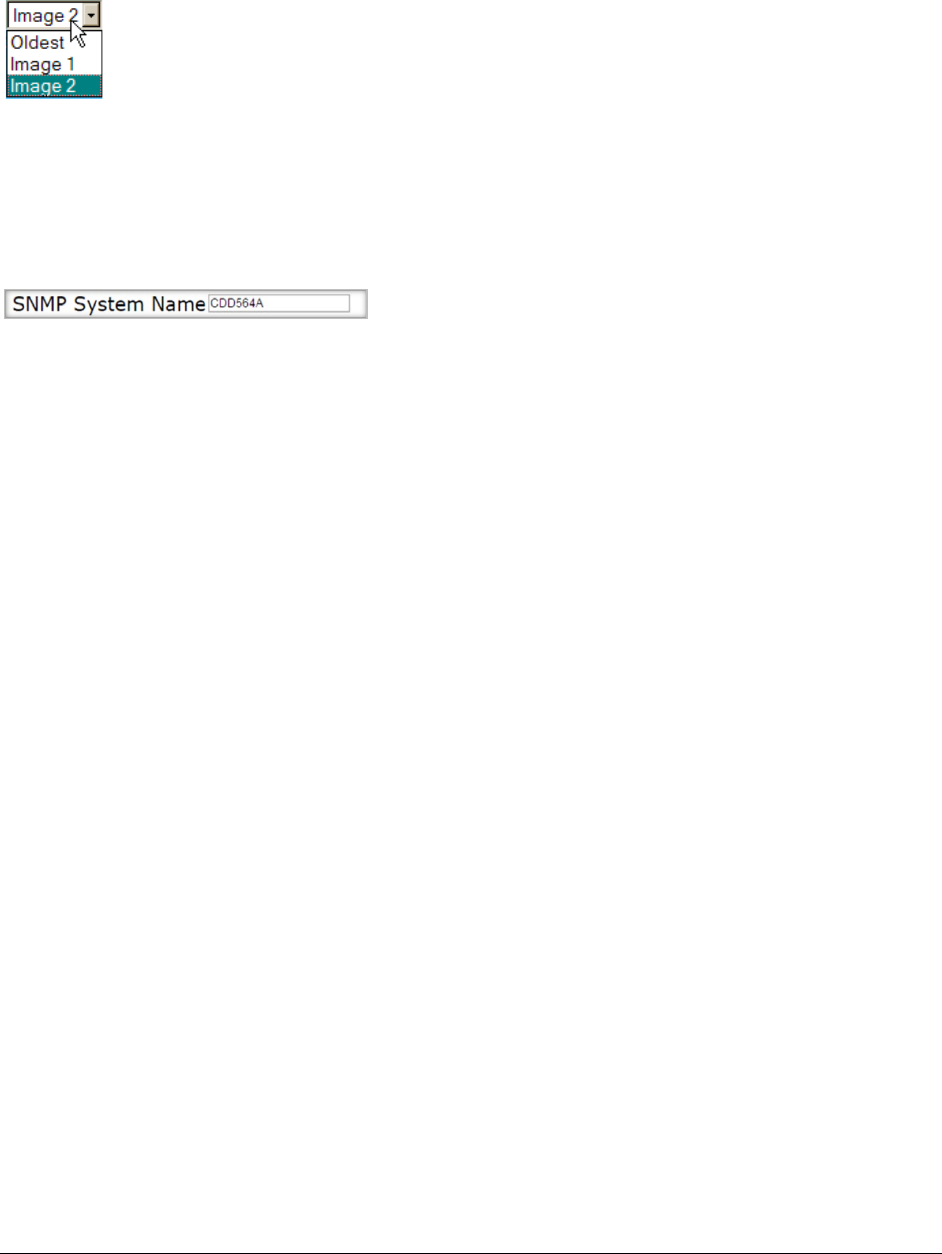

10.1.5 Drop-down menus
Drop-down menus show the selections available for a specific setting.
Move the cursor to the drop-down tab, and then click the tab. The drop-down opens and shows a list of
the available settings. Move the cursor to the correct setting, and then left-click to select that setting.
10.1.6 Text Boxes
Use text boxes to enter alphanumeric data.
Click inside the text box. Type the data. Press Enter when done.
