CDD-562AL/564A/L Multi-Channel Demodulator Revision 0
Introduction MN-CDD562AL/564AL
1–1
Chapter 1. INTRODUCTION
1.1 Overview
Equipped with an IP router, these demodulators are applicable to closed network applications.
• CDD-564A is a quad (4-channel) 70/140 MHz IF satellite demodulator
• CDD-564AL is a quad (4-channel) L-Band satellite demodulator
• CDD-562AL is a dual (2-channel) L-Band satellite demodulator

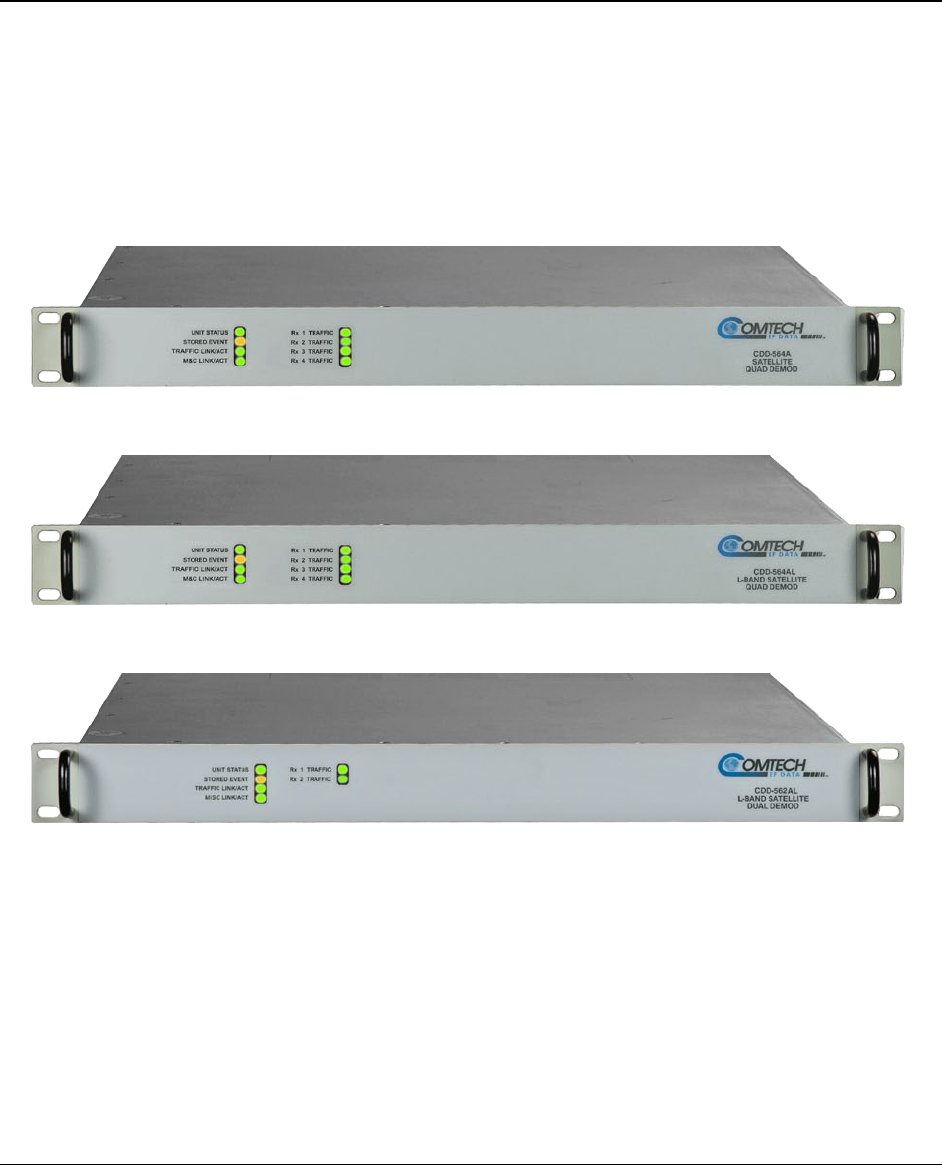

Figure 1-1. CDD-564A 70/140 MHz IF Satellite Quad Demodulator
Figure 1-2. CDD-564AL L-Band Satellite Quad Demodulator
Figure 1-3. CDD-562AL L-Band Satellite Dual Demodulator
Both frequency versions serve as replacements for the CDD-564L/CDD-562L (L-Band) or CDD-
564(70/140 MHz) Satellite Demodulators. They are 100% backwards compatible with their predecessors,
but incorporate new features and expansion capabilities.
Unless otherwise specified, these products are referred to collectively throughout this manual as the
CDD-56xA/L.
