PCB-4000 1+1 Phase Combiner Revision 2

Updating Firmware MN/PCB4000.IOM

4–9



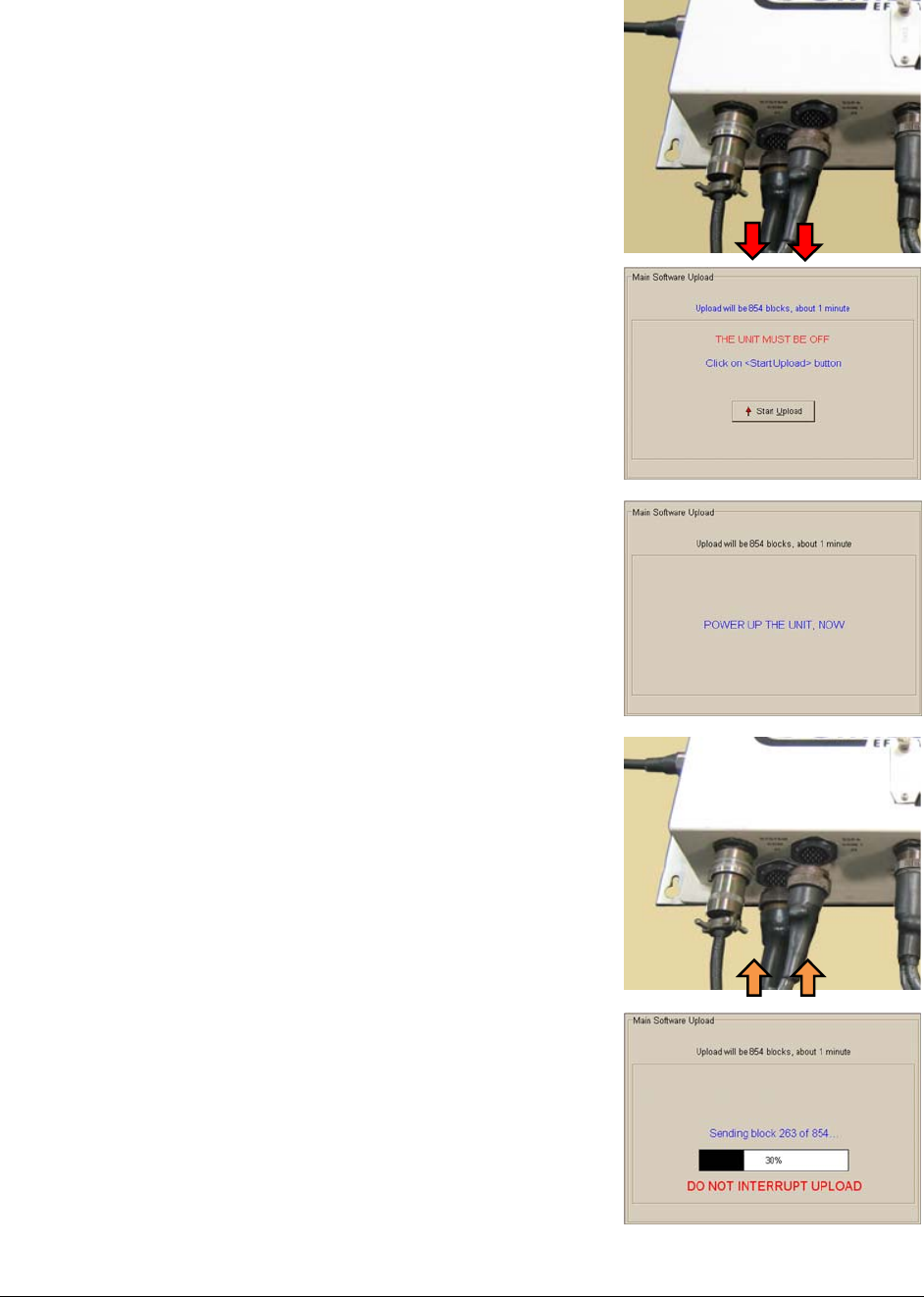

5. Prior to continuing the upload process, power off the

PCB‐4000 system by disconnecting the “SSPA COM 1 |

J2”and“SSPACOM2|J3”connectorcables.



Afterdisconnectingthesecables,click‘StartUpload’.



6. Whenprompted,reconnectthe“ SSPACOM1|J2”and

“SSPACOM2|J3”con

nectorcables.



7. Once communications have been re‐established

between the PC and PCCB, the upload will take place –

donotinterruptthisuploadprocess.


