PCB-4000 1+1 Phase Combiner Revision 2
Introduction MN/PCB4000.IOM
1–4
• TheRFsignalsfromthePCCBarefedtotheRFinputoftherespectiveSSPAviaasetof
phase‐matched cables. Again, the phase length (and matching) of these cables is
essentialtosystemoperationandnosubstitutesshouldbeused.Theroutingshouldnot
besuchtoca
useextremebends.
• Theoutput waveguide combining system consists of balanced waveguide lengths, two
waveguide transfer switches, a “Magic‐Tee” combiner with termination, and couplers
fortestandalignment.
1.3 Theory of Operation
As mentioned previously, phase combining is a common technique to increase the available
output power of an amplifier system. Referring back to the Figure 1‐2 system block diagrams,
when two si gnals of equal phase and amplitude are fed into the “Magic‐Tee” combiner, the
individual power of each SSPA is summed at the ou
tputport and cancelled in the termination
port.
Inrealsystems,thephaseandamplitudeofthetwosignalsareneverexactlyequal,sothereisa
small amount of power that is absorbed by the load termination. This terminated port is
sometimesreferred toas the“wasted” power port.In practi
ce,however, itispossible tokeep
phase and amplitude imbalances at low enough levels such that overall combining losses are
onlyinthe0.2to0.5dBrange.

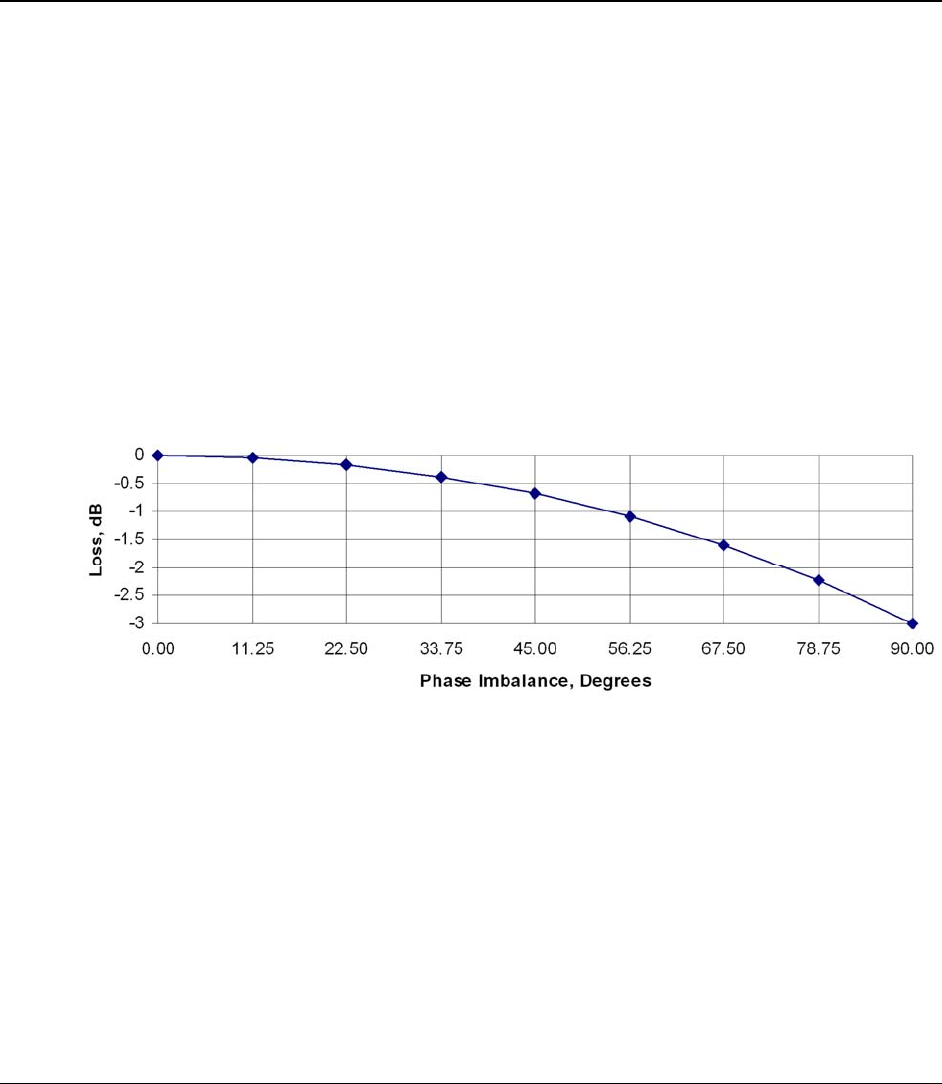

Figure1‐3showstheeff
ectsofphaseimbalanceonthepowercombiningefficiency.
Figure 1-3. Combining Loss vs. Phase Imbalance Summary of Specifications
1.3.1 Phase and Gain Equalization
Naturally,twoseparateamplifiersarelikelytohavedifferentphaseandgaincharacteristics.The
PCB‐4000 1+1 system is designed such that the phase difference between the two amplifier
pathsiscompensatedbyadjustingthephaseshifterinthePhaseCombinerControlBox.Thisis
done at the factory for the full ampli
fier bandwid th, and should not normally require further
adjustmentinthefieldunlessanamplifierhasbeenreplaced.(Seealignmentpr ocedure).
