PCB-4000 1+1 Phase Combiner Revision 2

Installation, Startup, and Troubleshooting Procedures MN/PCB4000.IOM

3–2

3.2 System Assembly, Cabling, and Installation

3.2.1 1+1 Phase Combiner System Assembly

Figure3‐1showsanexampleof the PCB‐4000deployedinatypical1+1 phase combinedsystem

(see AppendixA. ASSEMBLY KITS for details on band‐specificsystemapplications) . Take note of

thecalloutsinthisfigure,astheyarereferencedintheproceduresprovidedinthisappendix.



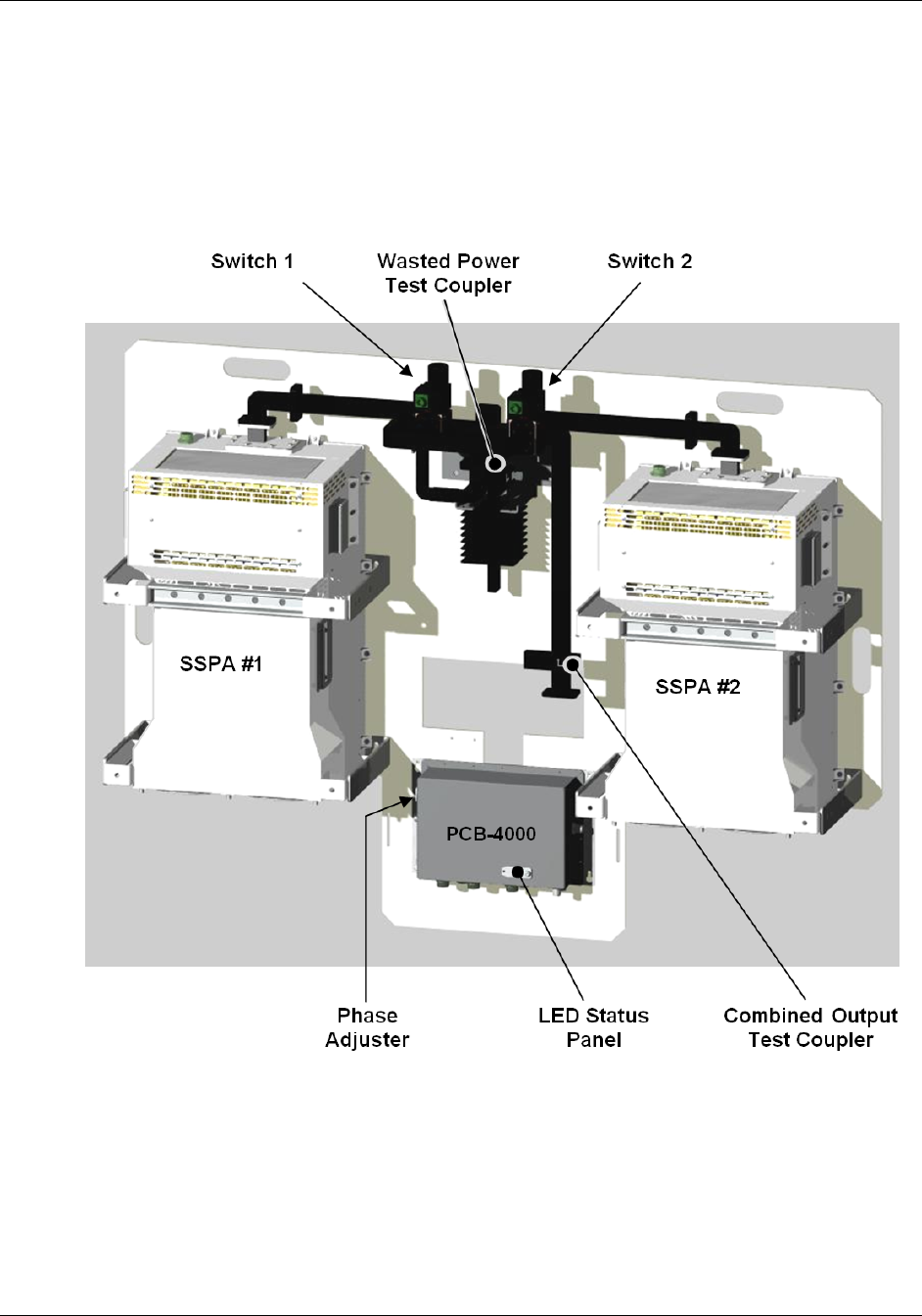

Figure 3-1. PCB-4000 1

+1 Phase Combiner System Assembly Example


