PCB-4000 1+1 Phase Combiner Revision 2

External Connectors MN/PCB4000.IOM

2–5

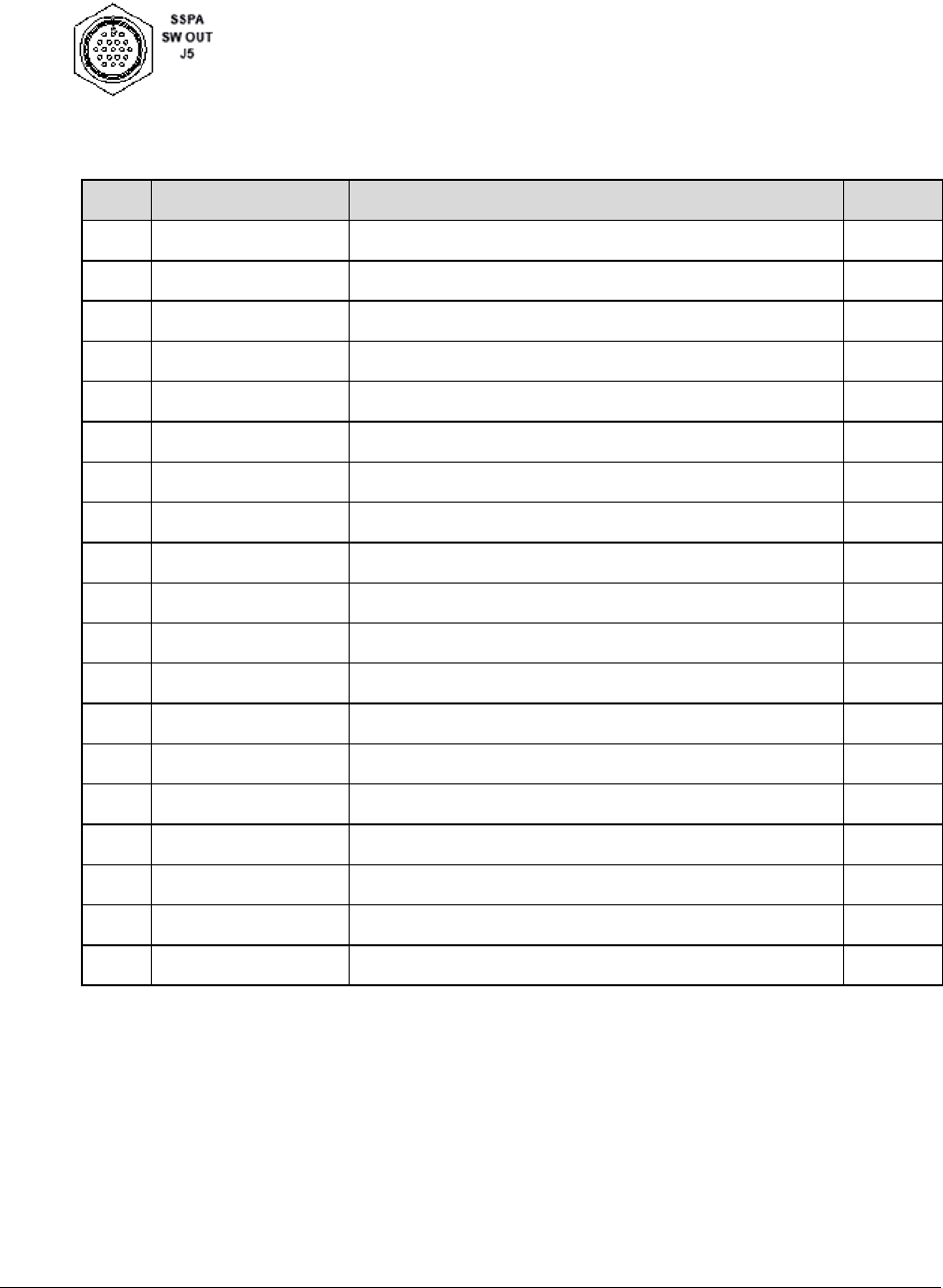

2.2.3 “SSPA SW OUT | J5” Connector

The 19‐pin circular “SSPA SW OUT | J5” connector, type MS3112E14‐19S,

connectsviaa“Y”cabletotheSSPA#1andSSPA#2waveguideswitches.



Matingconnector: ITTCannonMS3116J14‐19P(CEFDP/NCN/MS3116J14‐19P)



Table 2-4. “SSPA SW OUT | J5” Pinouts

Pin # Signal Function Signal Name / Description Direction

Pos1, SW1 Drive Output

Ground GND

POS2, SW1, Drive Output

POS1, SW1, Indicator Input

Ground GND

POS2, SW1, Indicator Input

POS1, SW2, Drive Output

Ground GND

POS2, SW2, Drive Output

POS1, SW2, Indicator Input

Ground GND

POS2, SW2, Indicator Input


