CSAT-5060/XSAT-7080 Transceiver iPAQ Link Revision 2

Operations MN/CiLink.IOM

3–12

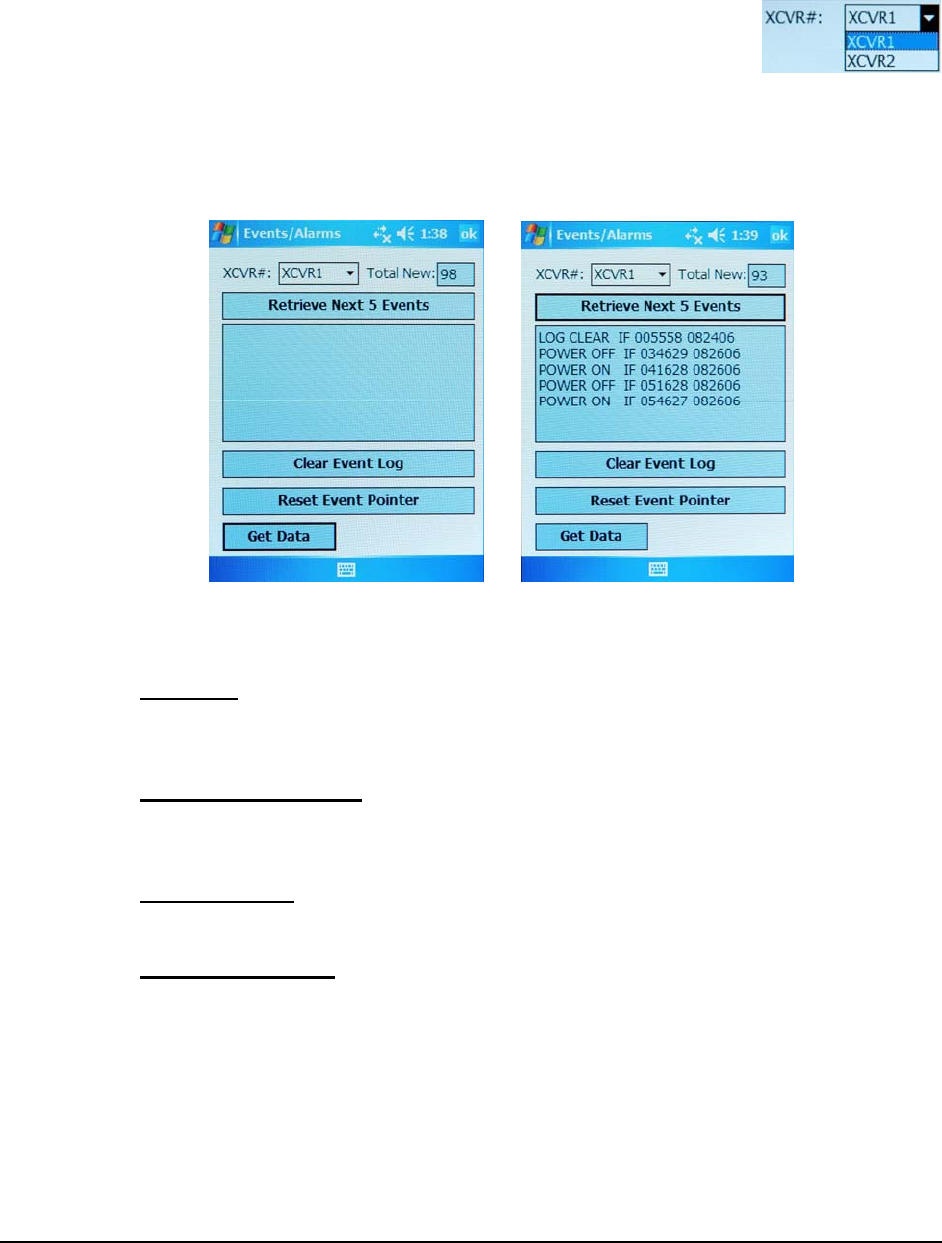

3.3.5 Main Menu Æ Stored Events / Alarms

The currently selected transceiver is the unit that will be polled for status

information in the

Stored Events / Alarms XCVR# selection box:

XCVR1 is the default transceiver and XCVR2 is not available if CiLink is set to operate under

standalone (non-redundant) system parameters (see

Configuration Æ System Type for detailed

information). This indicates status only and the currently selected transceiver cannot be changed

on this screen.

Querying of stored events and alarms is facilitated through reference or selection of the following

features:

• Total New status only – Displays the number of events that have occurred since last

viewing the stored events log. The count drops in increments of five as events are

displayed in the Event Window.

• Retrieve Next 5 Events – Selecting this feature displays a maximum of five sequential

events in the Event Window, posting in the order received since last retrieving the

contents of the stored events log.

• Clear Event Log – Selecting this feature erases any events in the event log and clears the

Event Window as shown in the image on the left.

• Reset Event Pointer – Selecting this feature resets the event pointer to the top of the

event list to show the start of the event log.

Tap [Get Data] to refresh the stored events log with newly-acquired event data. Otherwise, tap

[ok] to return to the Main Menu from the Stored Events & Alarms screen without further

querying the currently selected transceiver for data.
