CSAT-5060/XSAT-7080 Transceiver iPAQ Link Revision 2

Operations MN/CiLink.IOM

3–10

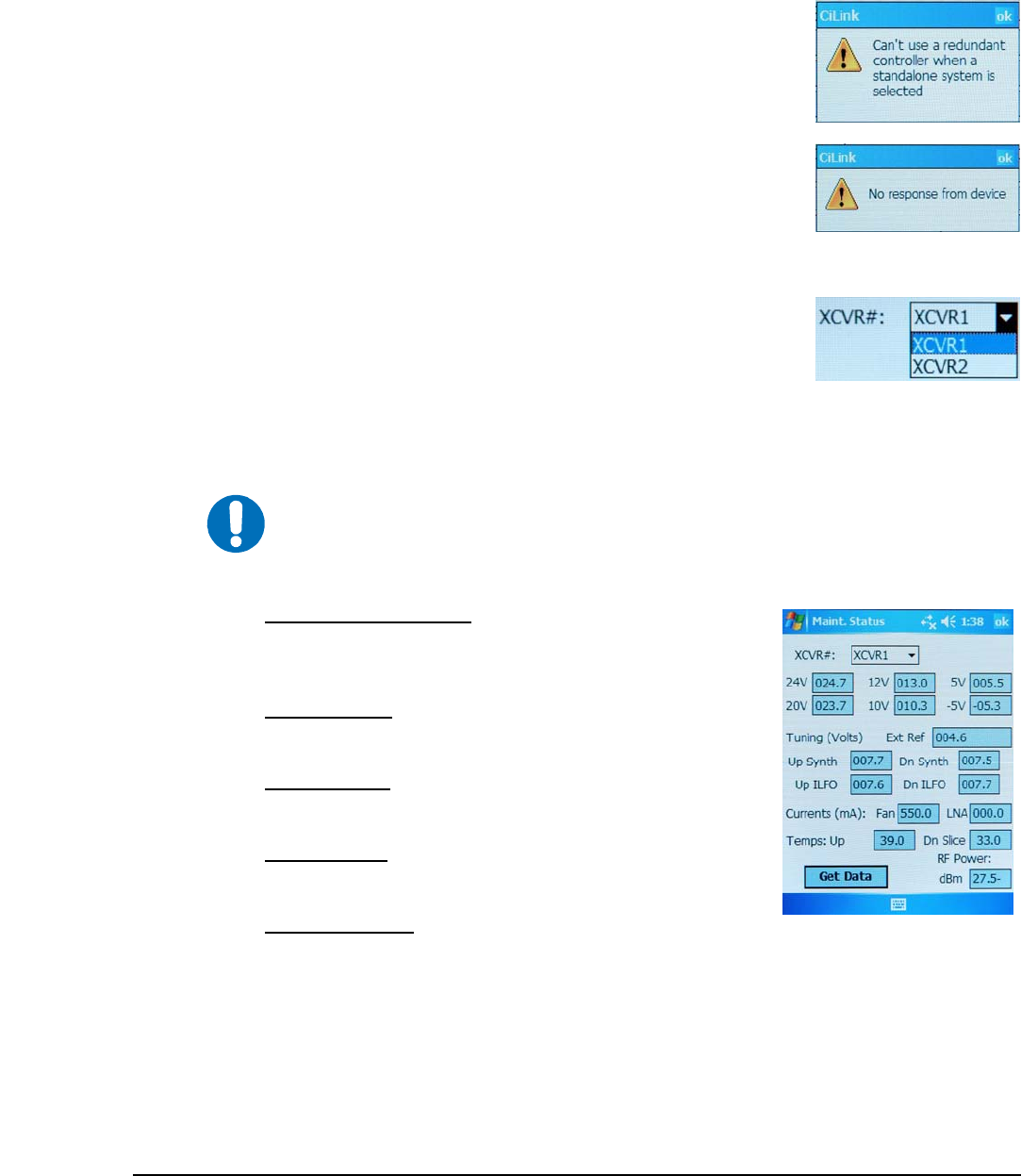

3.3.2.5.1 Redundancy Controller Error States

If the user attempts to configure the Redundancy Controller when

CiLink has been set up for standalone operation, the following error

message displays:

If the user has set up the CiLink system for 1:1 system operations in

the absence of a redundant system installation, the following error

message displays:

3.3.3 Main Menu Æ Maintenance Status

The currently selected transceiver is the unit that will be polled for

status information in the

Maintenance Status XCVR# selection box:

XCVR1 is the default selection and XCVR2 is not selectable if CiLink is set to operate under

standalone (non-redundant) system parameters (see

Configuration Æ System Type for detailed

information).

• XCVR Internal Voltages

– The transceiver unit monitors the

six internal DC voltages: 24, 20, 12, 10, +5 and –5. The

voltages are displayed for the currently selected transceiver.

• Tuning (Volts) – The transceiver monitors the four tuning

voltages that are variable depending on frequency.

• Currents (mA) – The cooling fan and the LNA currents are

displayed in milliamps.

• Temperatures – The Up Slice and Down Slice temperatures

are displayed in degrees C.

• RF Power (dBm) – The actual RF output power of the Up

Converter is displayed in dBm.

Tap

[Get Data] to query the selected transceiver and refresh the information parameters.

Otherwise, tap

[ok] to eturn to the Main Menu from the Maintenance Status screen.

IMPORTANT

The information provided on the Maintenance Status screen furnishes

information on a status only basis. All information furnished on this screen is

refreshed each time the Maintenance Status screen is selected, if the currently

selected transceiver is changed, or if the

[Get Data] icon is selected.
