CSAT-5060/XSAT-7080 Transceiver iPAQ Link Revision 2

Operations MN/CiLink.IOM

3–5

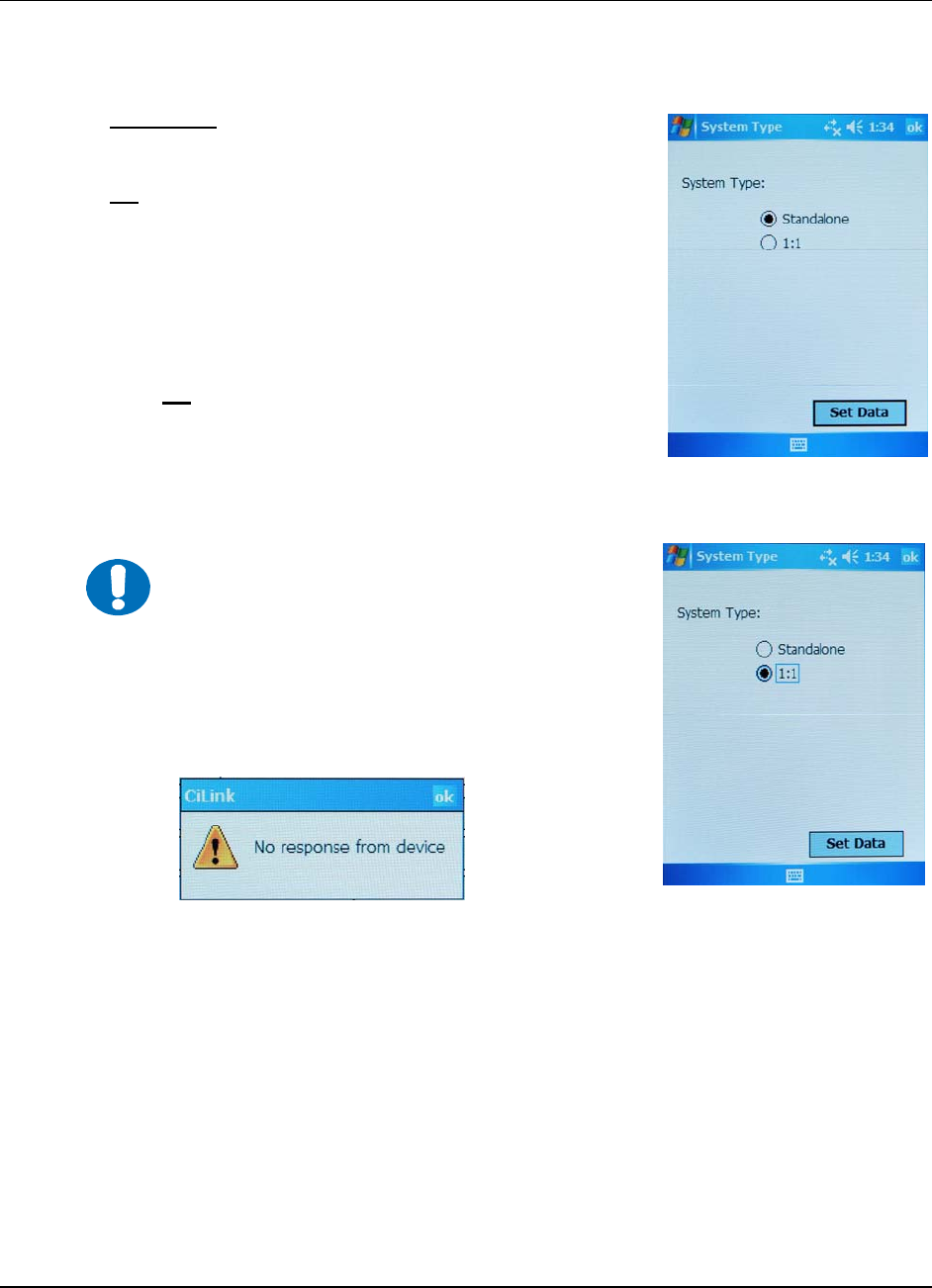

3.3.2.1 Main Menu Æ Configuration Æ System Type

There are two modes of operation when using CiLink: Standalone and 1:1.

• Standalone – The standalone mode is typically selected

when CiLink is used with a single transceiver.

• 1:1 (One-for-One) – The 1:1 mode is selected when two

transceivers are used in a redundant system configuration

with a redundant controller box (RED box – see Figure 2-6

on page 2-3). This mode can allow the user to control the

online / offline transceiver through the RED box. Refer to

page 3-9 to review the

Redundancy Controller control and

operating parameters.

When the

1:1 system is selected, the major difference in CiLink’s

functionality is the ability to select

XCVR1 or XCVR2. When

selecting

XCVR1, the parameters and controls are displayed for

the first transceiver. Alternately, when

XCVR2 is selected, the

corresponding parameters and controls are displayed for the

second transceiver.

Select the desired System Type, then tap

[Set Data] to save the active system setup selection.

Otherwise, tap

[ok] to return to the Main Menu from the Configuration Æ System Type

screen.

The Redundancy Controller configuration mode

(Main Menu Æ Configuration Æ Redundancy

Controller) is selectable only if CiLink has been

configured as a 1:1 system.

If a 1:1 System Type is selected in absence of a

redundant system (i.e., when a standalone unit

is connected to the handheld device), an error

message displays:

See page 3-9 for more information.

IMPORTAN
