CSAT-5060/XSAT-7080 Transceiver iPAQ Link Revision 2

Operations MN/CiLink.IOM

3–3

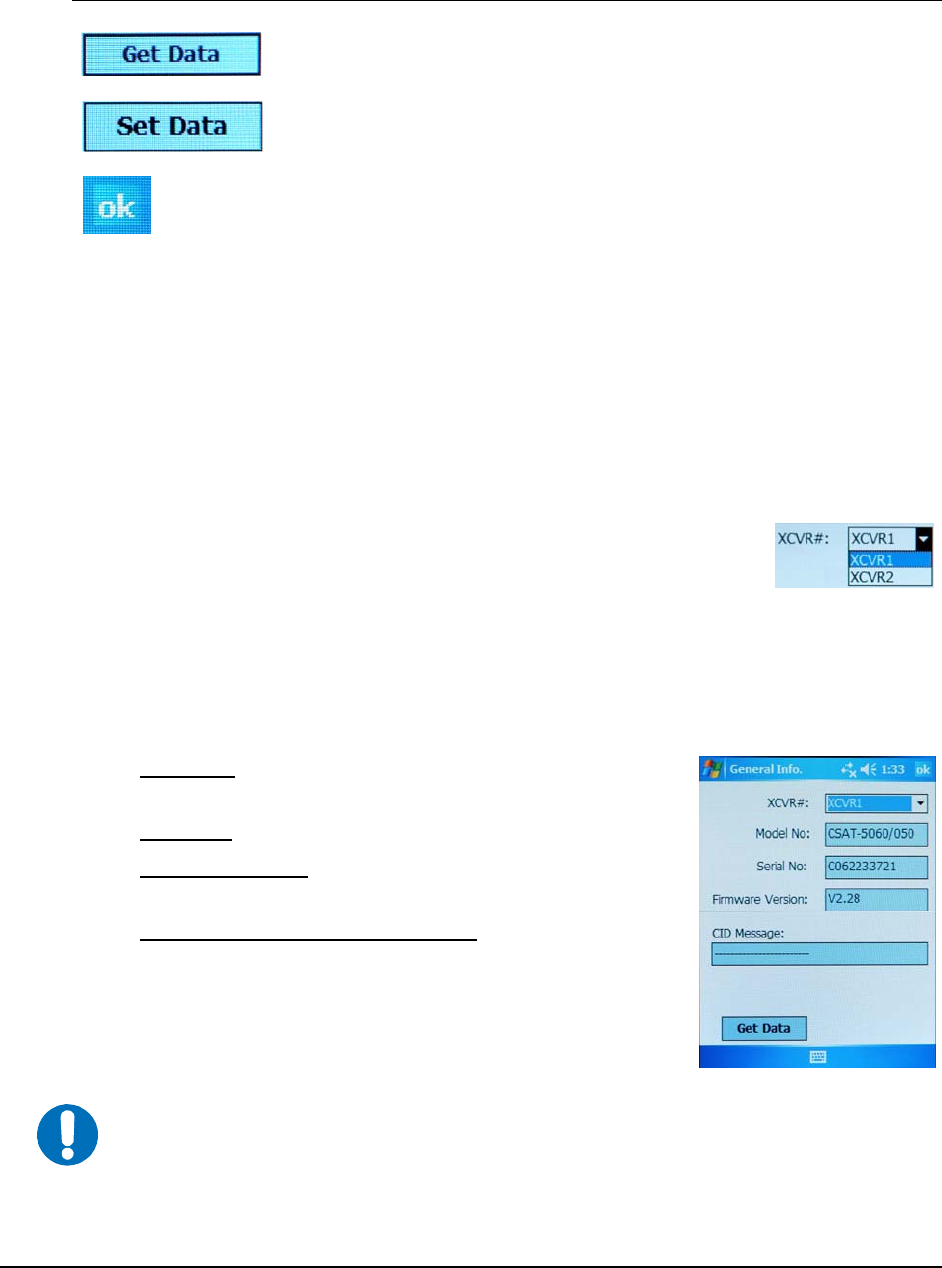

ICON FUNCTION

Tap the

[Get Data] icon to refresh the active screen with

existing configured data from the currently selected transceiver.

Tap the

[Set Data] icon to save any parameters that may have

changed; the system is updated with the data currently displayed

on the active screen.

As described on page 2-8, tapping the

[ok] icon from the Main

exits the CiLink program and returns the user to Windows.

However – for all other functions, tapping the [ok] icon on any

command screen that is nested below the

Main Menu (and

requires user input) serves to

reject all changes made to the

programmable parameters within that active screen, and returns

the user to the

Main Menu screen.

3.3.1 Main Menu Æ General Information

The General Information screen displays the status parameters for the currently selected

transceiver.

The currently selected transceiver is the unit that will be polled for status

information in the

General Info. XCVR# selection box:

XCVR1 is the default selection and XCVR2 is not selectable if CiLink is set to operate under

standalone (non-redundant) system parameters (see

Configuration Æ System Type for detailed

information).

Once the appropriate selection is made, the

General Information screen displays the following

data:

• Model No. – the currently selected transceiver model

number.

• Serial No. – the currently selected transceiver serial number.

• Firmware Version – the currently selected transceiver

firmware version.

• CID (Circuit Identification) Message – the currently

selected transceiver programmable text message.

Tap

[Get Data] to refresh the active screen with configured data

from the currently selected transceiver. Otherwise, tap

[ok] to return

to the Main Menu from the General Information screen.

IMPORTANT

parameter displa

ed in a shaded box – on this screen as well as all others –

rovides the user with non-selectable, status-only information.
