CSAT-5060/XSAT-7080 Transceiver iPAQ Link Revision 2

Setup MN/CiLink.IOM

2–2

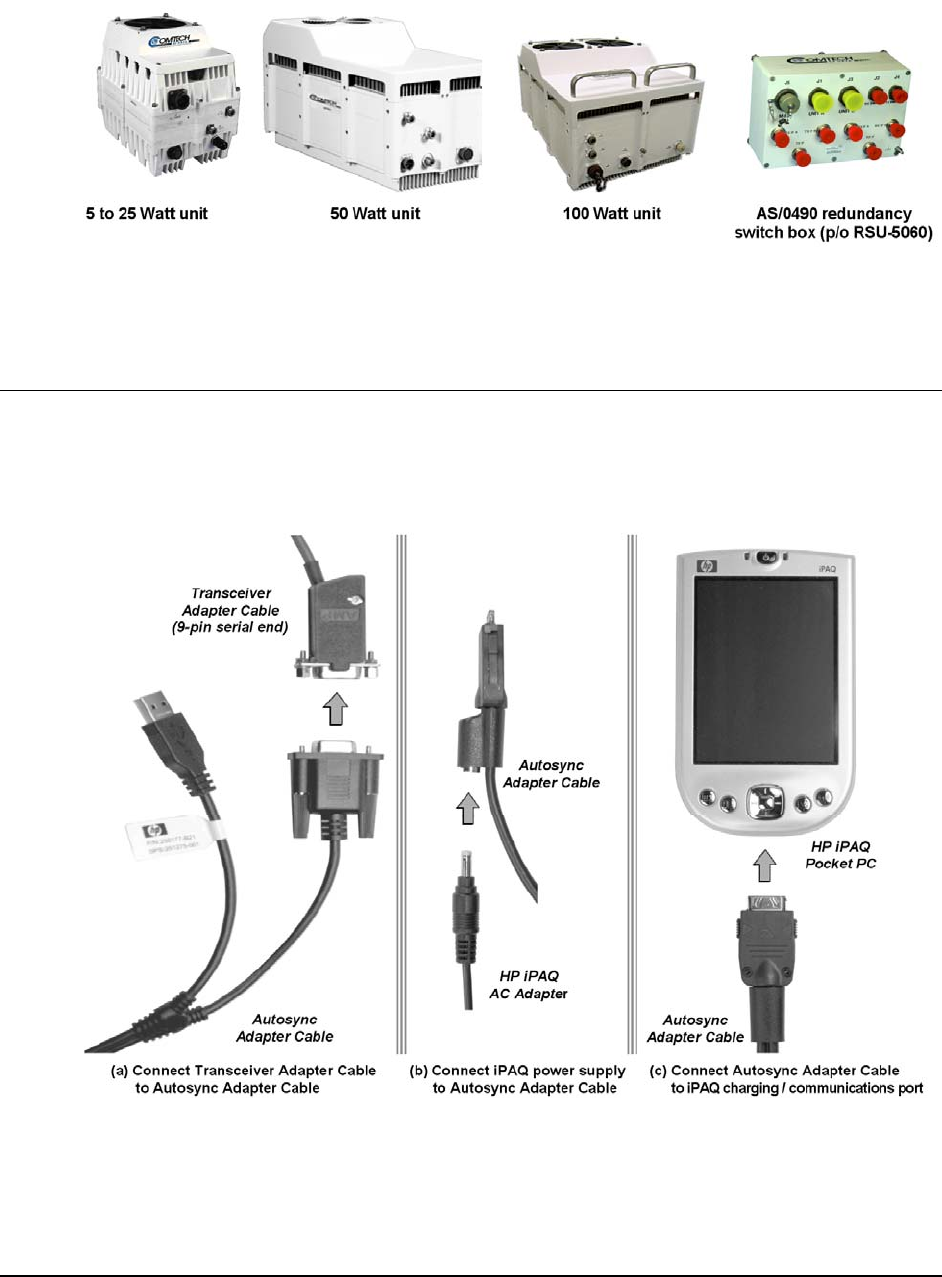

Figure 2-2. Comtech EF Data’s Family of Low to High Power CSAT-5060 C-Band

or XSAT-7080 X-Band Transceivers

(sold separately)

2.2 HP iPAQ Pocket PC Connections

As shown in Figures 2-3 (a) through 2-3 (c), assemble the Transceiver Adapter Cable 9-pin serial

connector to the Autosync Adapter Cable; connect the iPAQ power supply to the Autosync Adapter

Cable; then plug the cable into the iPAQ charging / communications port.

Figure 2-3. Device Cable Connections
