3–1

Chapter 3. OPERATIONS

3.1 Establishing the Communications Link

Before proceeding further, the transceiver installation must be powered on. Note that the

transceiver does not contain a ‘Power On/Off’ switch; the transceiver is powered ON by

connecting the J3 “AC Power” connector to the appropriate prime power source.

WARNING

Never turn the CSAT-5060 or XSAT-7080 ON or operate the unit without proper

waveguide termination on the J2 “RF OUTPUT” port. Individuals can be exposed

to dangerously high electromagnetic levels.

Once all connections are properly established between the handheld device and the transceiver,

and the transceiver is powered ON, select

Open Port from the CiLink main page [Figure 3-1(a)].

Figure 3-1. Establishing the transceiver communications link

CiLink functionality is enabled and the command bars activate once the communications link

with the transceiver is established [Figure 3-1(b)]. This functionality is available for as long as

the transceiver remains ‘online’ with CiLink. Conversely, select

Close Port [Figure 3-1(b)] to

terminate the session and disable CiLink’s functionality.

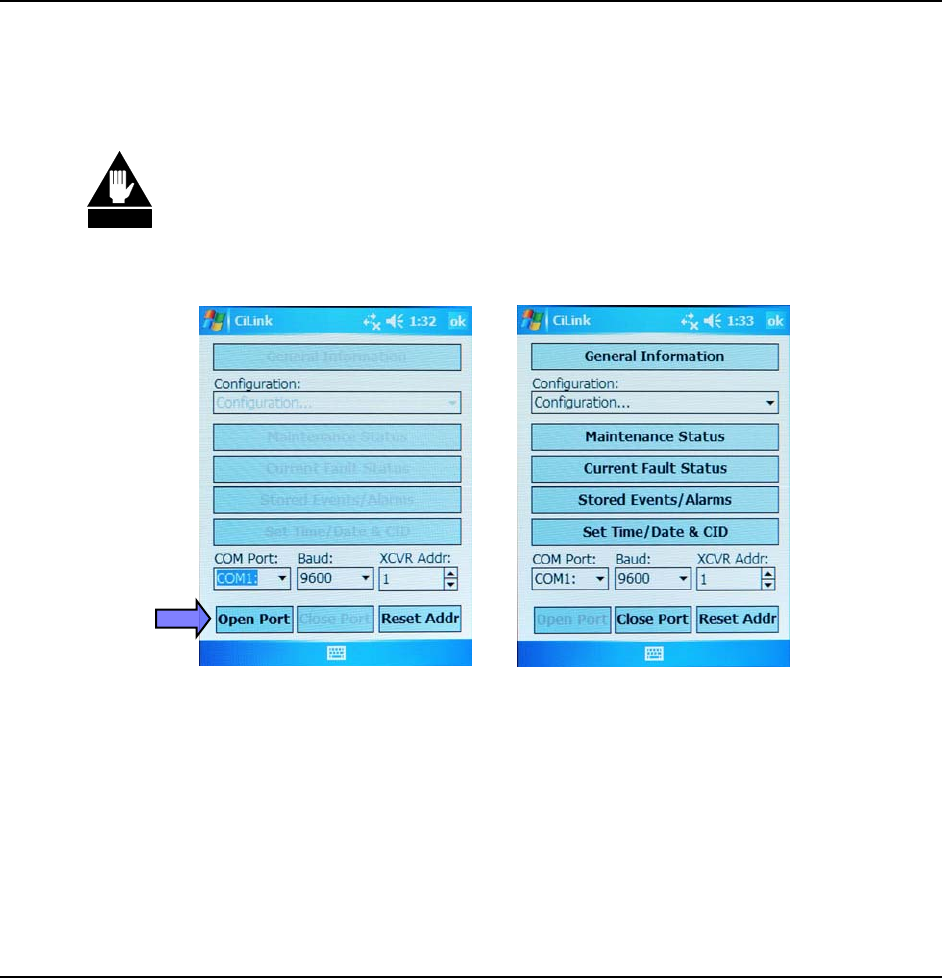

(a) Connecting to transceiver (b) Connection active / system online
