2–1

Chapter 2. SETUP

2.1 Getting Started

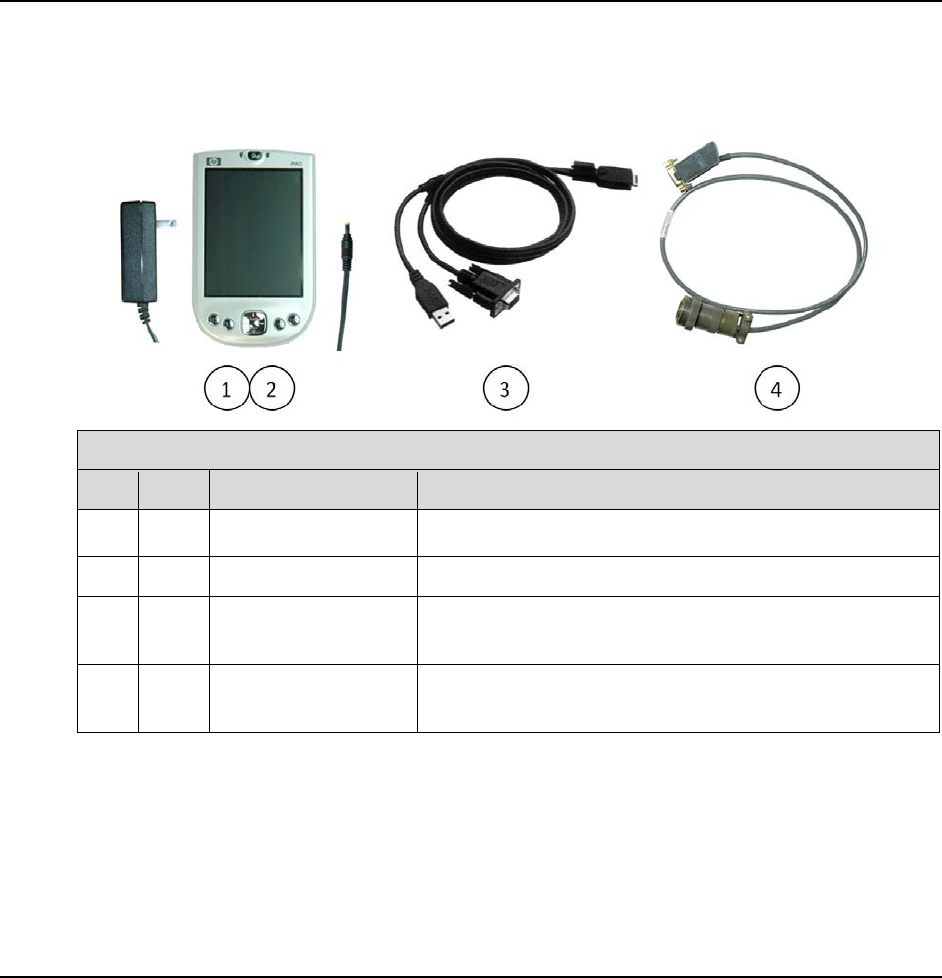

The items shown in Figure 2-1 depict what is minimally required to use this installation and

operations manual:

CEFD CiLink

Kit P/N LKFT/12453

Item Qty CEFD Part number Description

1 1 LFPL/HPIPAQ-P2

HP rx1950 series iPAC Pocket PC with pre-installed CiLink

program

2 1 PP/IPAQ-ACADAPT AC Adapter Travel Kit

3 1 CA/HP-IPAQ*

Universal USB / Serial Autosync Cable: iPAQ data interface

to USB and CSAT/XSAT 9-pin serial RS-232 / RS-485

connectors

4 1 LFCA/WR9902-1

Comtech EF Data RoHS adapter cable: CSAT/XSAT 19-pin

J5 COMM Port connector to 9-pin serial RS-232 / RS-485

connector

* This interface cable is product-specific. If a handheld device other than an HP iPAQ series product is used, the appropriate serial

adapter cable must be acquired for proper connection and operation as outlined in this manual.

Figure 2-1. CiLink Kit LKFT/12453

Operation of the CiLink Kit requires interface with the J5 COMM port of one of the CSAT-5060

C-Band and XSAT-7080 X-Band series Transceivers shown in Figure 2-2, installed either as a

standalone unit or in redundancy:
