CSAT-5060/XSAT-7080 Transceiver iPAQ Link Revision 2

Setup MN/CiLink.IOM

2–3

IMPORTANT

Throughout this manual, ‘transceiver’ and ‘XCVR’ are used interchangeably to

refer to the CSAT-5060 or XSAT-7080 interface.

2.3 Transceiver Cable Connection

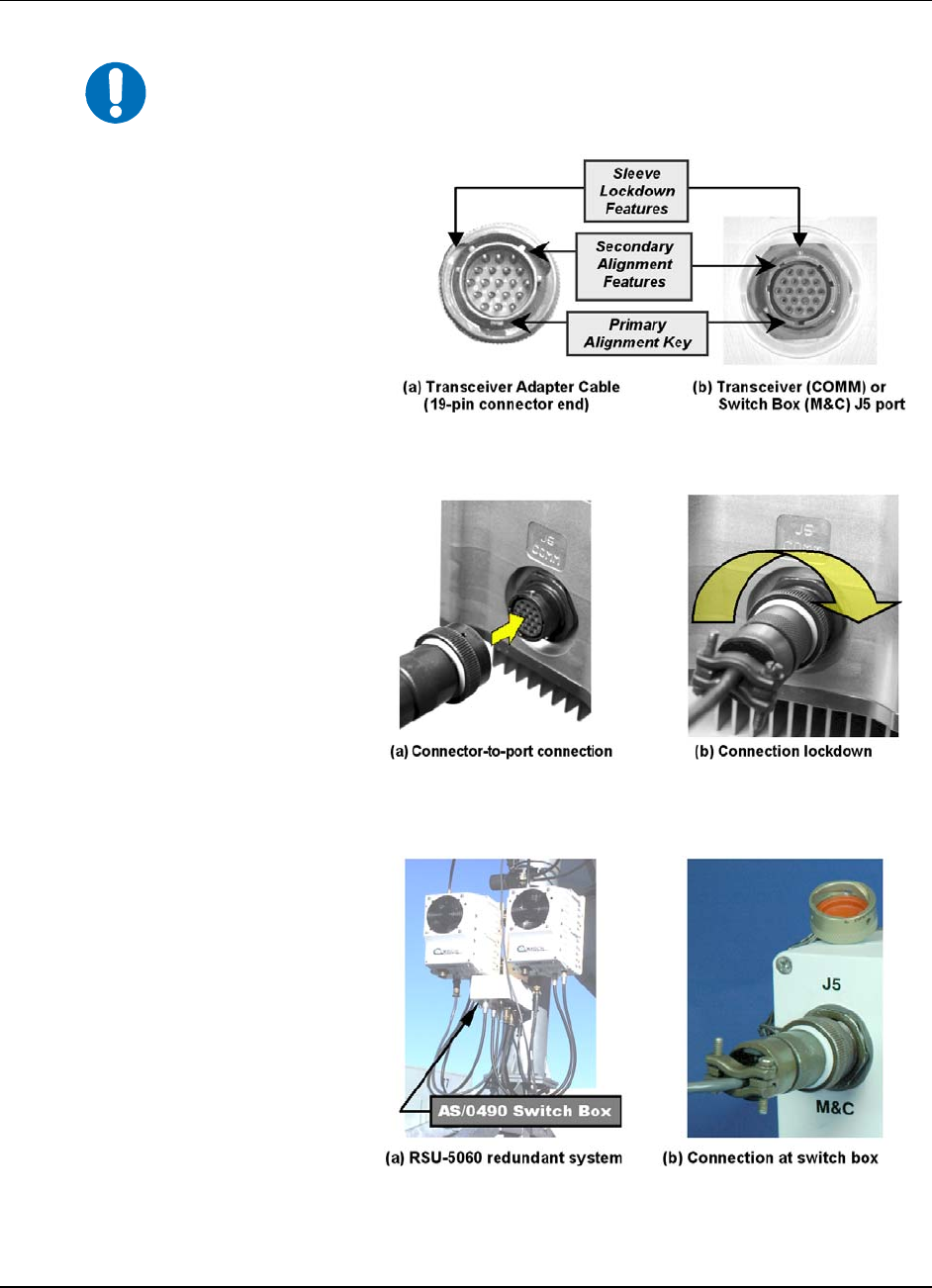

Figure 2-4. 19-pin Connector Key Alignment

Transceiver Adapter Cable connection to J5 COMM port

Figure 2-5. Transceiver Connection

Transceiver Adapter Cable connection to J5 COMM port

Figure 2-6. RSU-5060 Redundant System Connection

Transceiver Adapter Cable connection to J5 M&C port at the

AS/0490 switch box

Figures 2-4 through 2-6 depict

connection of the Transceiver

Adapter Cable 19-pin connector

end to the J5 COMM port at

either a standalone transceiver

or at the AS/0490 switch box

used in an RSU-5060 redundant

installation [see Figure 2-6].

For either connection, the J5

COMM port features a keyed

configuration [see Figures 2-4(a)

and 2-4(b)].

Engage the primary alignment

key, then plug the connector

into the J5 port by pushing the

connector forward to engage

both the alignment key and the

secondary keyed tabs [see

Figure 2-5(a)].

Complete the connection by

turning the connector sleeve

clockwise until the sleeve

lockdown tabs engage fully

with an audible ‘click’ [see

Figure 2-5(b)].
