Vipersat Configuration

3-58 Vipersat CDM-570/570L User Guide

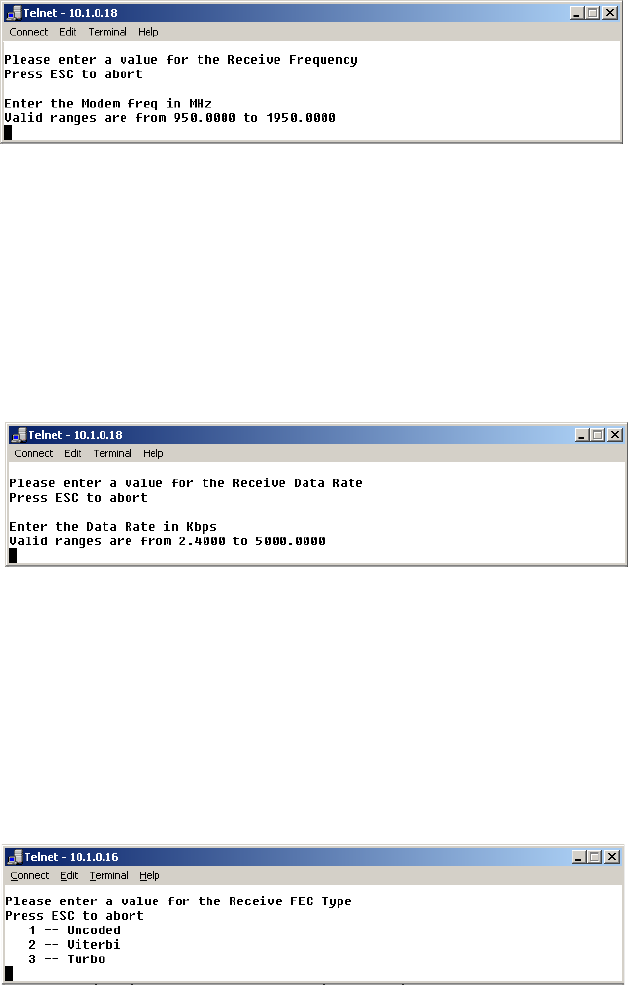

Figure 3-77

Receive Frequency prompt

Note that this screen dialog example displays the frequency range for the CDM-

570L L-Band modem. For the CDM-570, the range displayed will be either 50

to 90 MHz or 100 to 180 MHz.

Receive Data Rate

Enter N at the command prompt to use the dialog shown in Figure 3-78 to set

the Receive Data Rate for the target CDM-570/570L’s Home State.

Figure 3-78

Receive Data Rate prompt

Note that the valid range for this parameter will vary depending on the Modula-

tion Type, Coding Rate, and FAST feature Data Rate.

Receive FEC Type

Enter O at the command prompt to use the dialog shown in figure 3-79 to set the

Receive FEC Type for the target CDM-570/570L’s Home State. Turbo must

be selected when operating in Vipersat mode.

Figure 3-79

Receive FEC Type prompt
