Chapter 2 - Quick Start Configuration 2-5

Initial Configuration

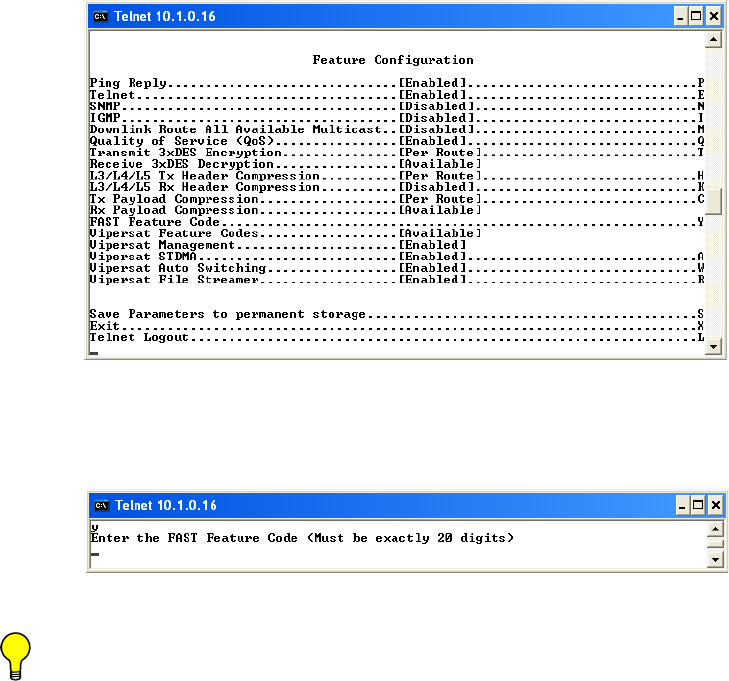

Figure 2-3

Feature Configuration screen

To enter the feature codes, enter Y at the command prompt, then enter the 20

digit FAST Feature Code, as shown in figure 2-4.

Figure 2-4

FAST Feature Code dialog

Tip: The network administrator will have the FAST Feature codes. These are

generated and stored by the unit serial number for the target CDM-570/

570L. The target unit’s serial number can be found on the rear of the unit

chassis.

4. After entering the FAST Feature code, return to the Administration

screen (shown in figure 2-2) by entering X at the command prompt from

the Feature Configuration menu. Ensure that the Working Mode is set to

Router-Vipersat.

If it is not, enter C and change the setting by selecting 4, as shown in

figure 2-5. The unit will automatically reboot in order to implement the

change for this setting.
