Chapter 3 - Using the Command Line Interface (CLI) 3-57
Vipersat Configuration
Transmit Modulation Type
Entering E at the command prompt to use the dialog shown in figure 3-75 to set
the Transmit Modulation Type for the target CDM-570/570L’s Home State.

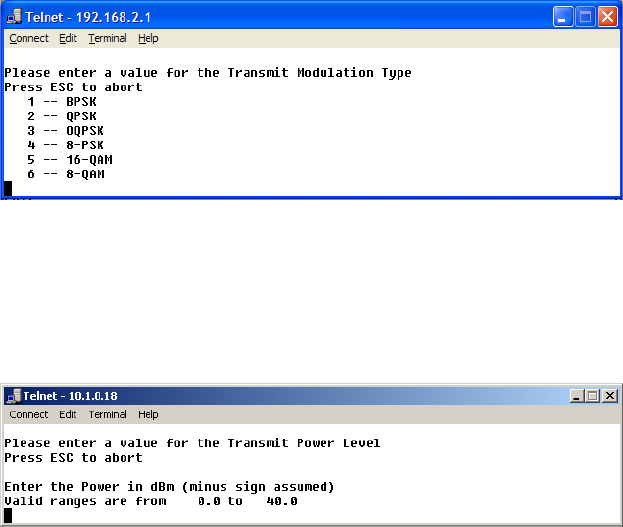

Figure 3-75
Transmit Modulation Type prompt
Transmit Power Level
Enter F at the command prompt to use the dialog shown in Figure 3-76 to set
the Transmit Power Level for the target CDM-570/570L’s Home State.
Figure 3-76
Transmit Power Level prompt
Transmit Enable
The modem transmitter can be Enabled or Disabled with this command. Enter G
at the command prompt to toggle the Transmit Enable for the target
CDM-570/570L’s Home State between On and Off.
Receive Frequency
Enter M at the command prompt to use the dialog shown in Figure 3-77 to set
the Receive Frequency for the target CDM-570/570L’s Home State.
