Vipersat Configuration

3-22 Vipersat CDM-570/570L User Guide

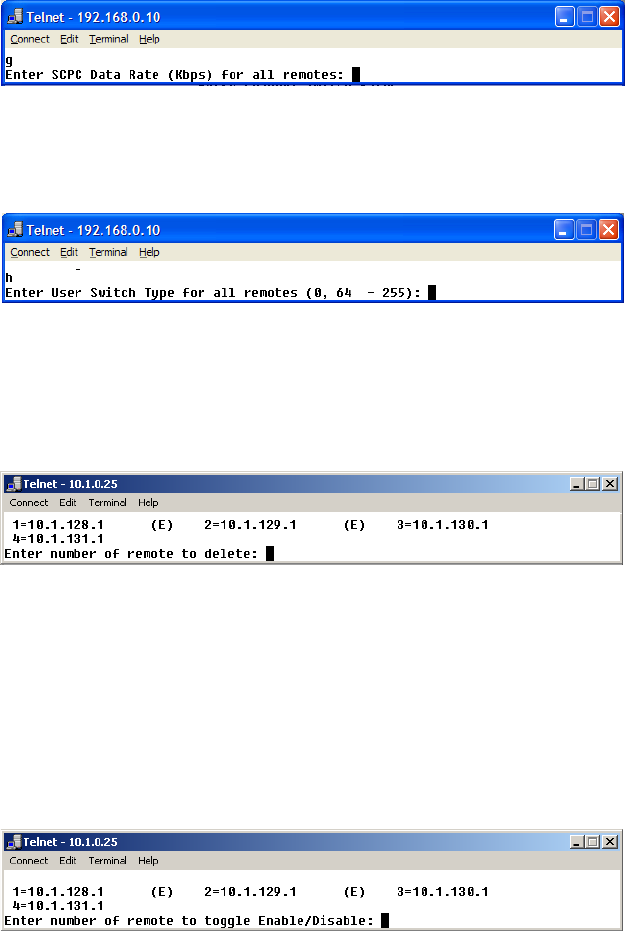

Figure 3-24

Global SCPC Data Rate prompt

Similarly, the Global Switch Type command can be used to set the switch type

for all or a majority of the Remotes. Enter H at the command prompt.

Figure 3-25

Global Switch Type prompt

Delete Remote

Entering D at the command prompt shown in figure 3-17 brings up the Delete

Remote dialog shown in figure 3-26.

Figure 3-26

Delete Remote prompt

Enter the number of the Remote CDM-570/570L at the command prompt to

delete it from the STDMA group for this Hub burst controller.

Enable/Disable Remote

Enter E at the command prompt in figure 3-17 to display the dialog shown in

figure 3-27. The Remotes in the STDMA group are displayed, indicating

whether each is currently Enabled (E) or Disabled.

Figure 3-27

Enable/Disable Remote prompt

Enter the number of the Remote at the command prompt to toggle the Remote

from its current Enable/Disable configuration.
