Initial Configuration

2-4 Vipersat CDM-570/570L User Guide

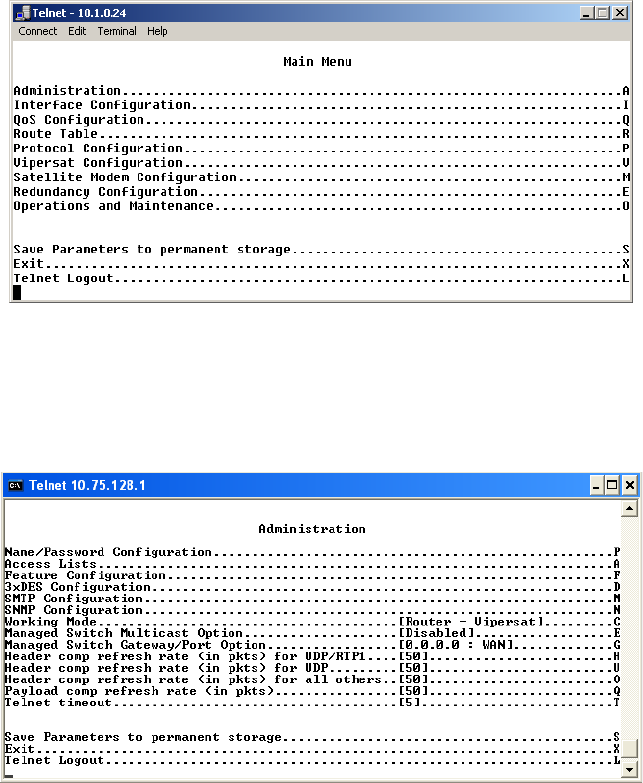

Figure 2-1

Main Menu screen

2. From the Administration screen shown in figure 2-2, select the Features

Configuration command by entering F at the command prompt.

Figure 2-2

Administration screen

3. From the Feature Configuration menu shown in figure 2-3, verify

whether or not the Vipersat Feature Codes are Available (appears as

shown in the figure). These codes are entered prior to shipment from the

factory; however, if the codes display as Unavailable, they will have to be

re-entered.
