Vipersat Configuration

3-32 Vipersat CDM-570/570L User Guide

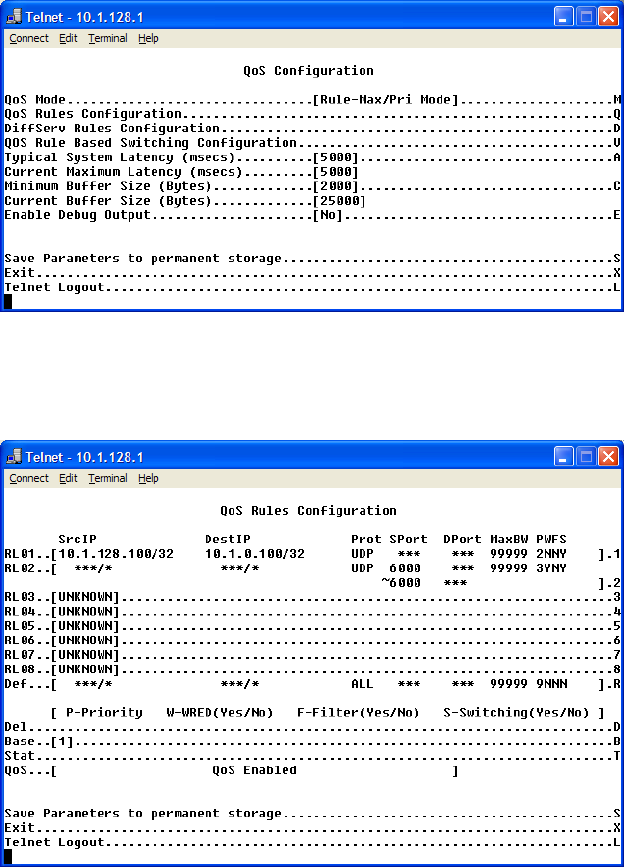

Figure 3-36

QoS Configuration screen

Enter Q at the command prompt in figure 3-36 to access the QoS Rules Config-

uration screen, as shown in figure 3-37.

Figure 3-37

QoS Rules Configuration screen

Configure the desired number of rules that are necessary for the applications to

be used for this network. Refer to the CDM-570/570L Installation and Opera-

tion Manual for details on configuring QoS Rules for the CDM-570/570L.
