RCS20 M:N Redundancy Switch Revision 15
System Cabling Configuration MN-RCS20 and CD-RCS20
B–13
(See Appendix C for L-Band Switch Block Diagram)

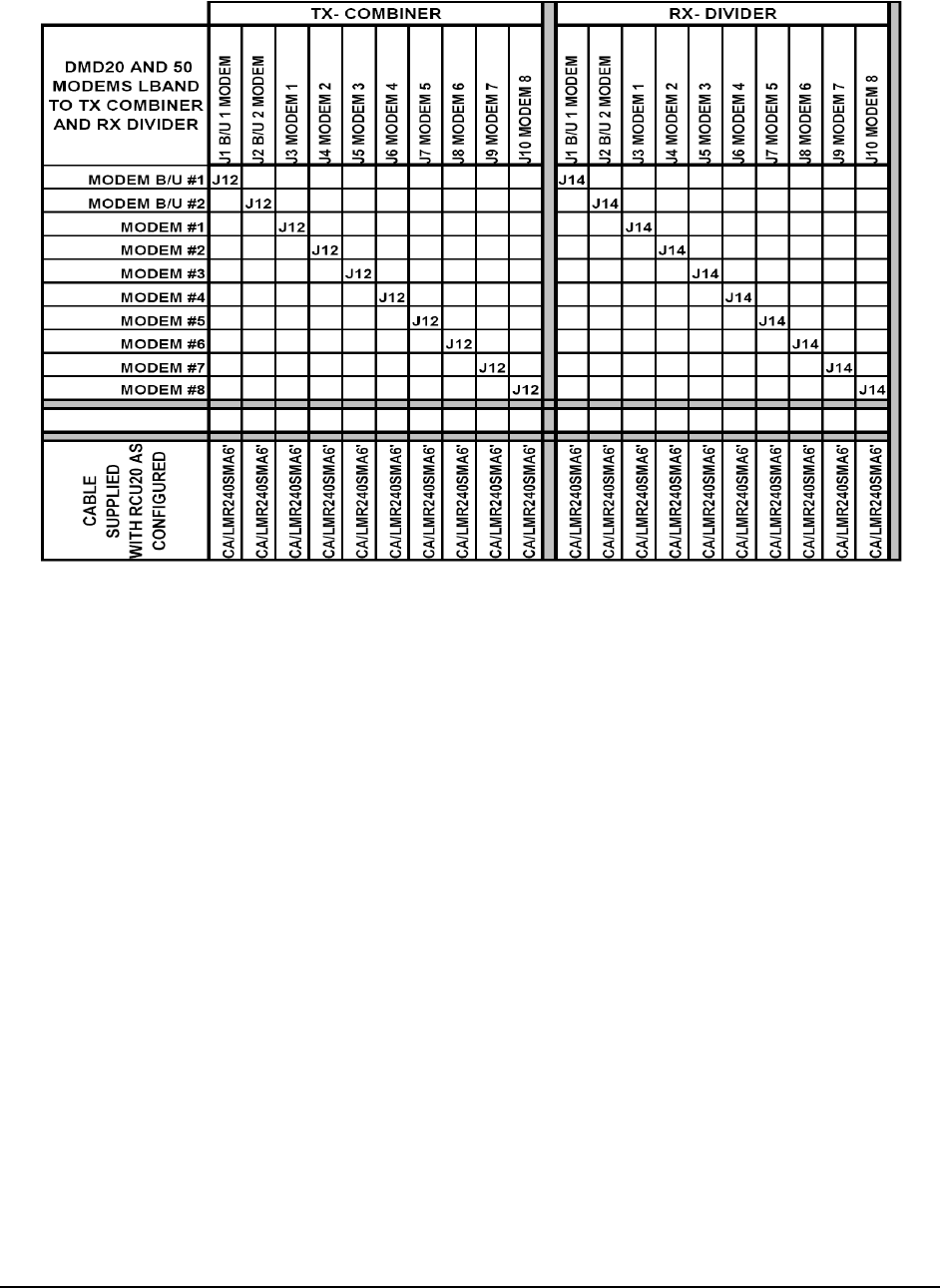

Figure B-23 shows a cable chart for the DMD20-50 units to TX-Combiner and RX-Divider.
Figure B-23. RCS20 Interconnect with DMD20-50 Units to TX-Combiner and RX-Divider
