OM20 Universal Outdoor Modem Appendix E
MN-OM20– Revision 5 E–5

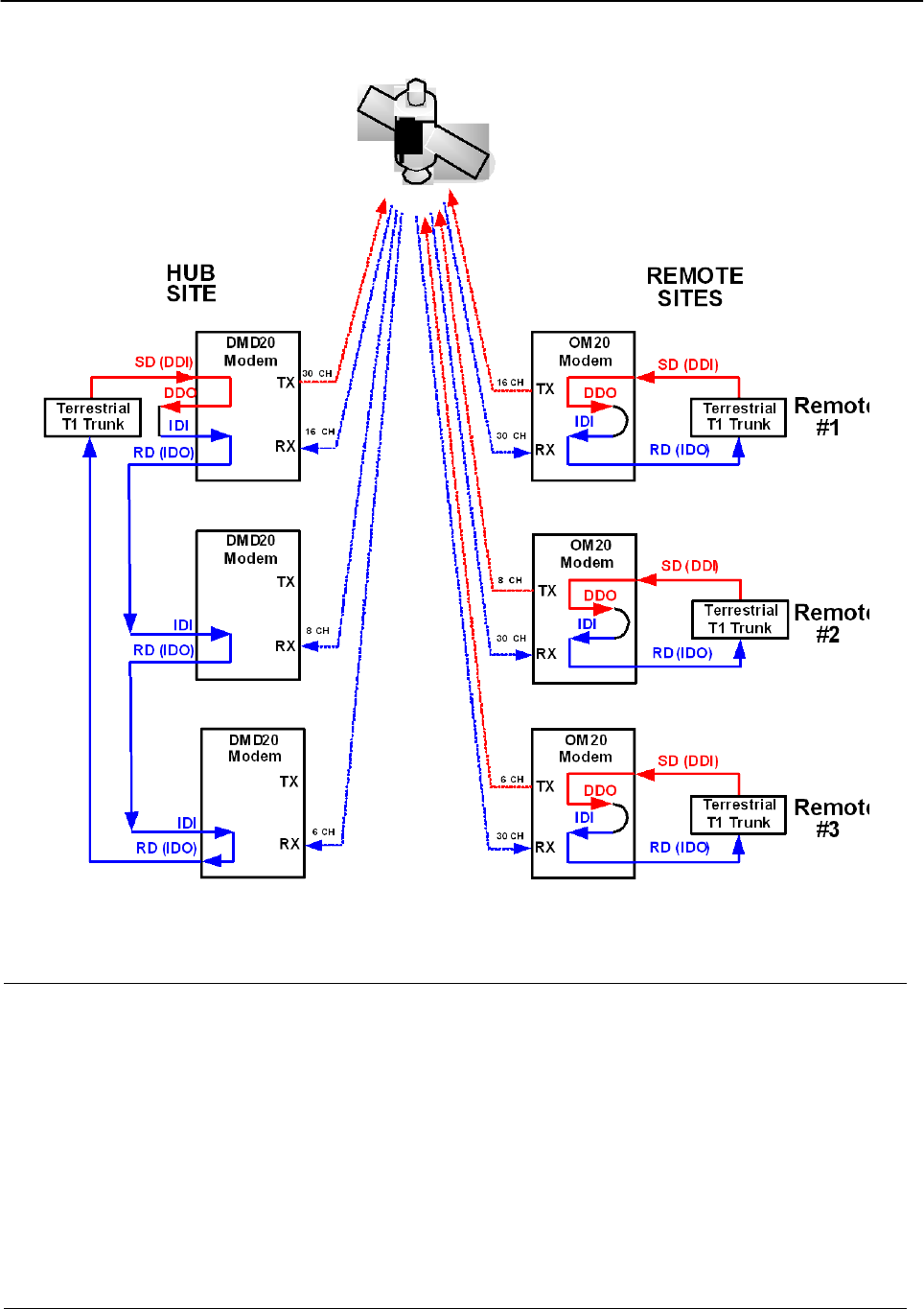

Figure E-1. Multidestinational Communications
E.6 Drop and Insert Mapping
The following displays under Interface D&I Setup (both Tx and Rx), are editing displays only:
SATCh TS
Enter to Edit
Any changes made in these displays are made on the screen, but are not entered into the modem.
Once these menus are configured, the Mapping Menu must be used to actually enter the settings
into the modem.
