OM20 Universal Outdoor Modem Web Browser/Remote Protocol
MN-OM20– Revision 5 6–57
HW/FW Configuration Menu

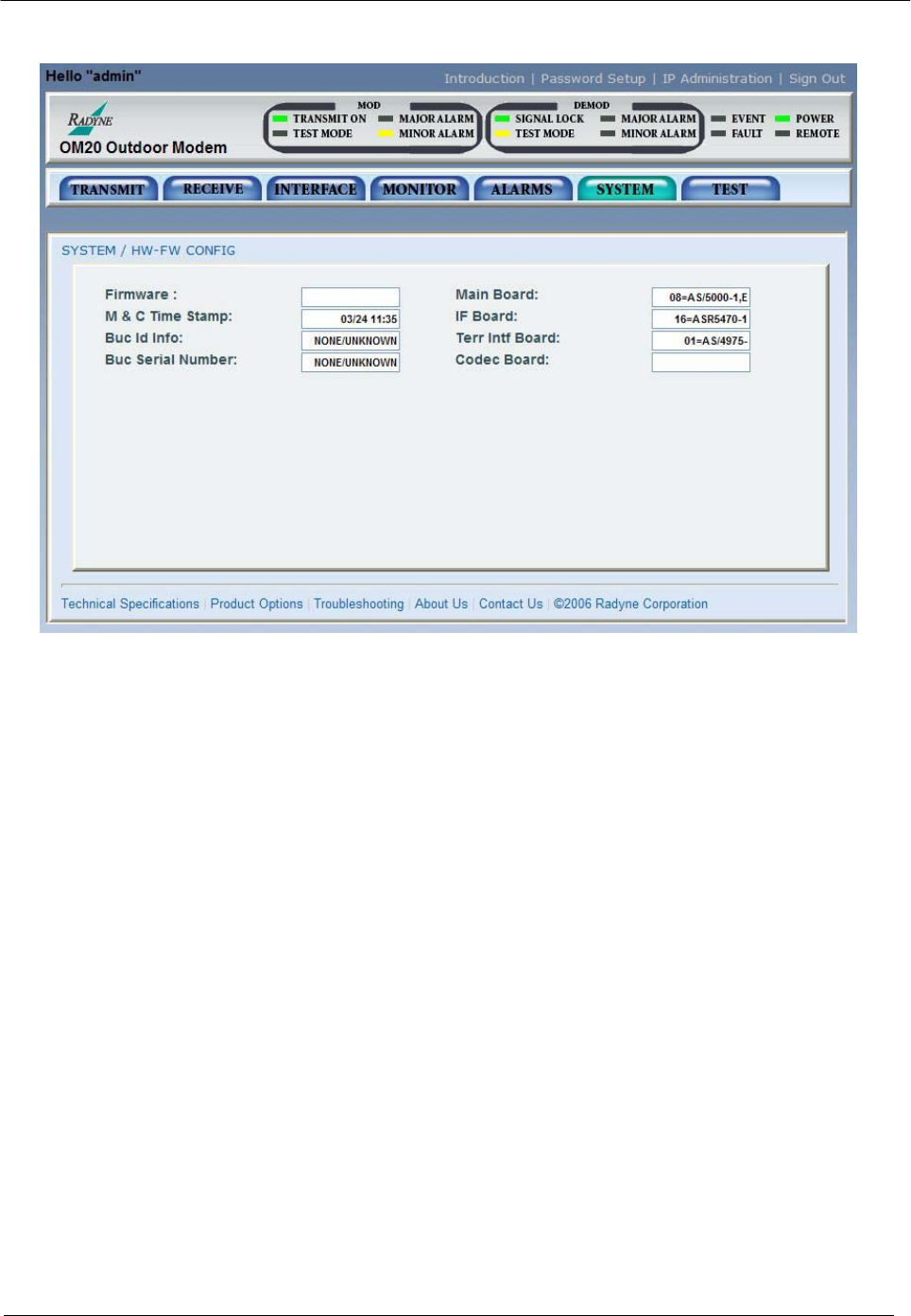

Figure 6-28. HW/FW Configuration Menu
Firmware Revision: Displays the installed firmware revision.
M&C Revision: Displays the installed Monitor and Control revision.
Main Board: Indicates the Radyne part number for the Baseband Board
Assembly.
IF Board: Indicates the Radyne part number for the IF Board Assembly.
Terr Intf Board: Indicates the Radyne assembly number for the Terrestrial
Interface Assembly.
Codec Board: Indicates the Radyne part number for the Codec Board.
