UT-4500-A Series Upconverters Revision 1
Appendix B MN-UT4500A
B–11
B.4.1.3 Manual Configuration and Verification

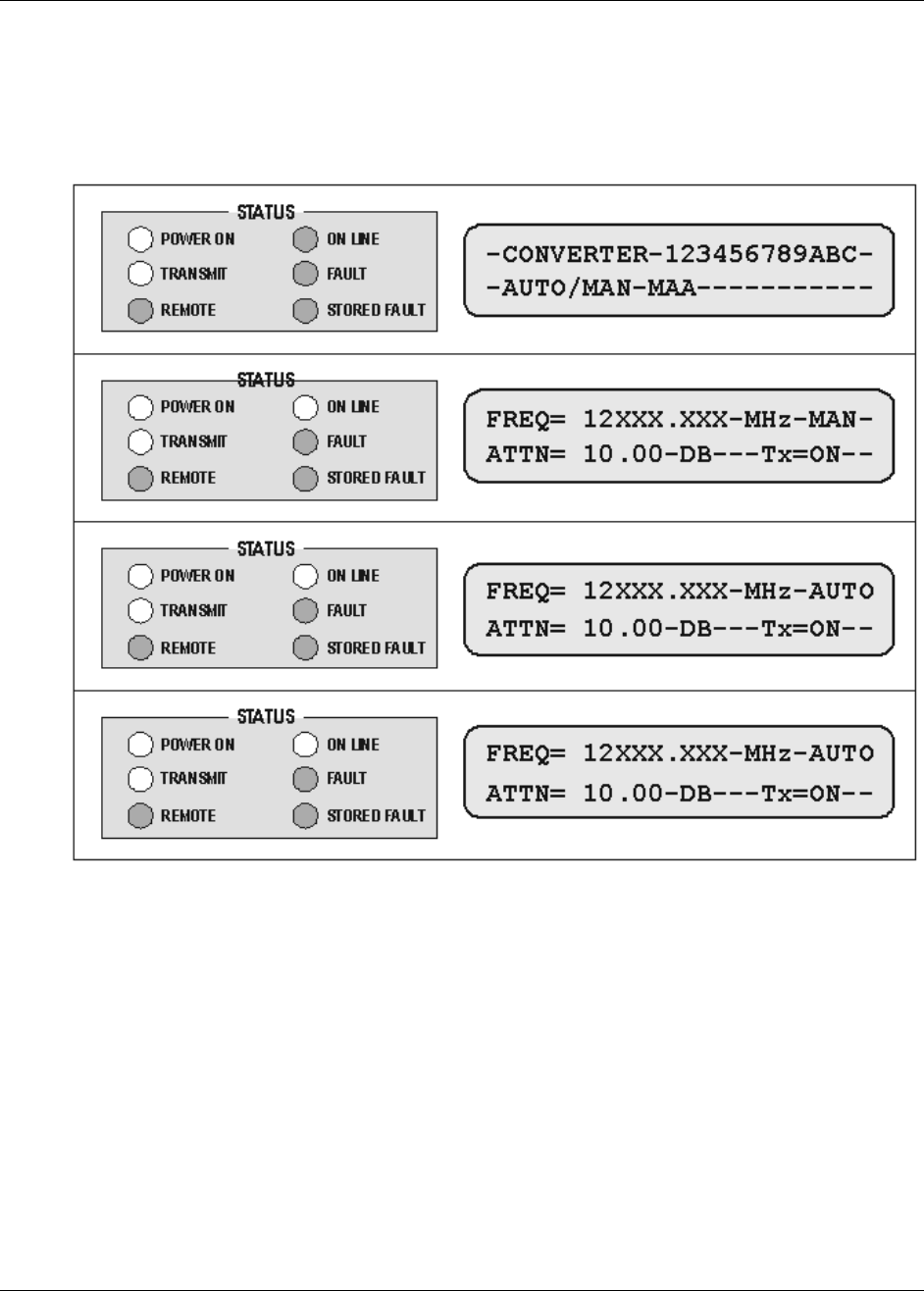

Figure B-12 shows the system with Upconverter #1 configured for manual (M) operation. In this
mode, the backup upconverter can force switchover of an online unit. This mode also overrides
fault status detection of the online units performed by the backup upconverter. If an online unit
is configured to manual mode and this unit faults, no switchover will occur.
Figure B-12. Converter #1 in MANUAL, Others in AUTO
