UT-4500-A Series Upconverters Revision 1
Appendix B MN-UT4500A
B–5

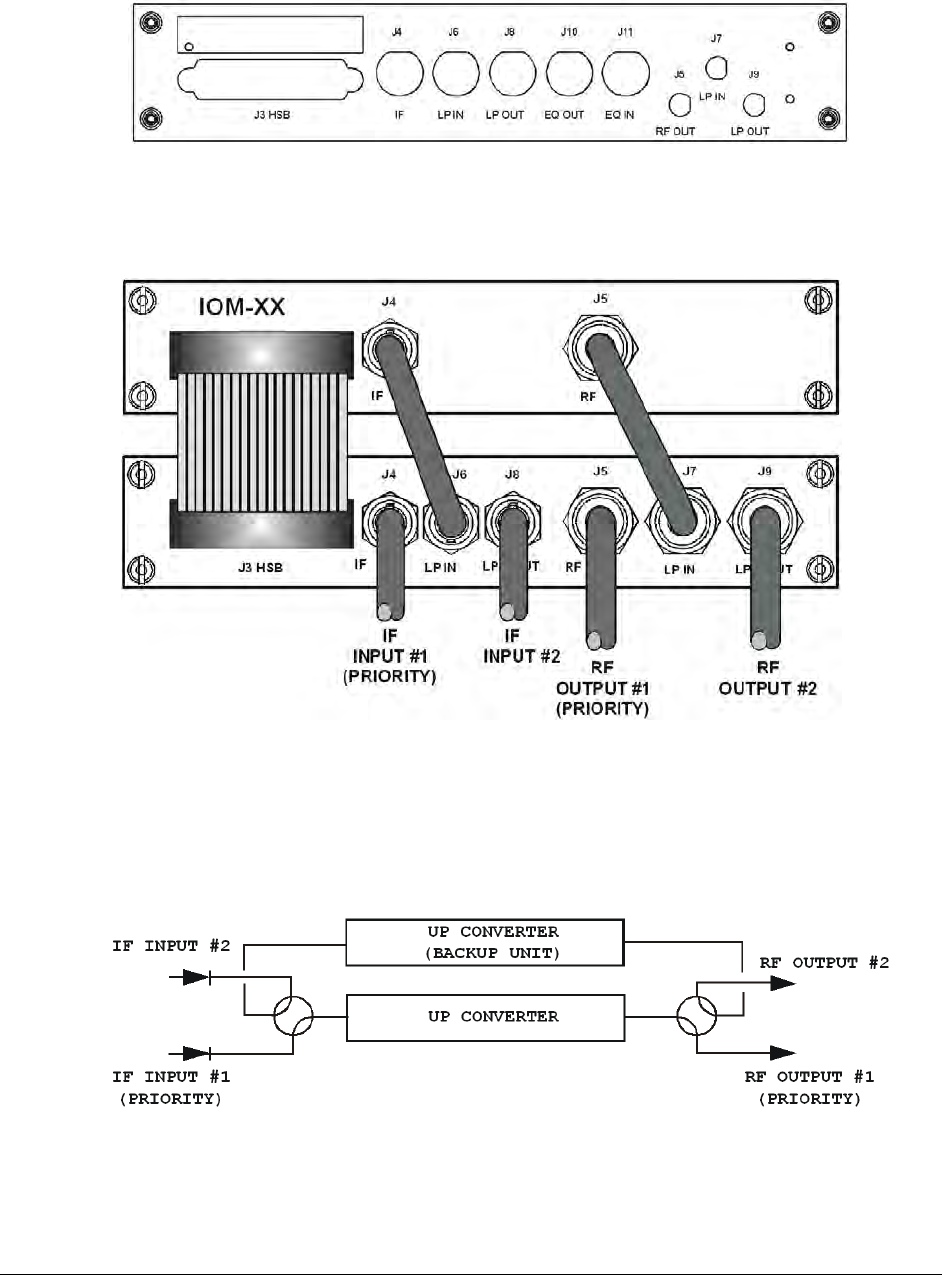

Figure B-4. TSEQM Connection Locations
Figure B-5. 1:1 Redundant Configuration - Dual Source IF Input
Figure B-6. 1:1 Redundant Configuration Diagram – Dual Source IF Input with IOM-XX and
TSM-XX Installed
