UT-4500-A Series Upconverters Revision 1
Ethernet-based Remote Product Management MN-UT4500A
6–15
Click [Submit SNMP] to save. Otherwise, click [Reset] to revert to the previously assigned SNMP
designations.
6.4.5.3 Config Pages
Click the Config tab, and then select the Converter, Ref, Pre-selects, Utility, or Redundancy
hyperlink to continue.
6.4.5.3.1 Config | Converter
Use this page to configure the communications, operations, and alarms/faults handling for the
UT-4500-A Upconverter.

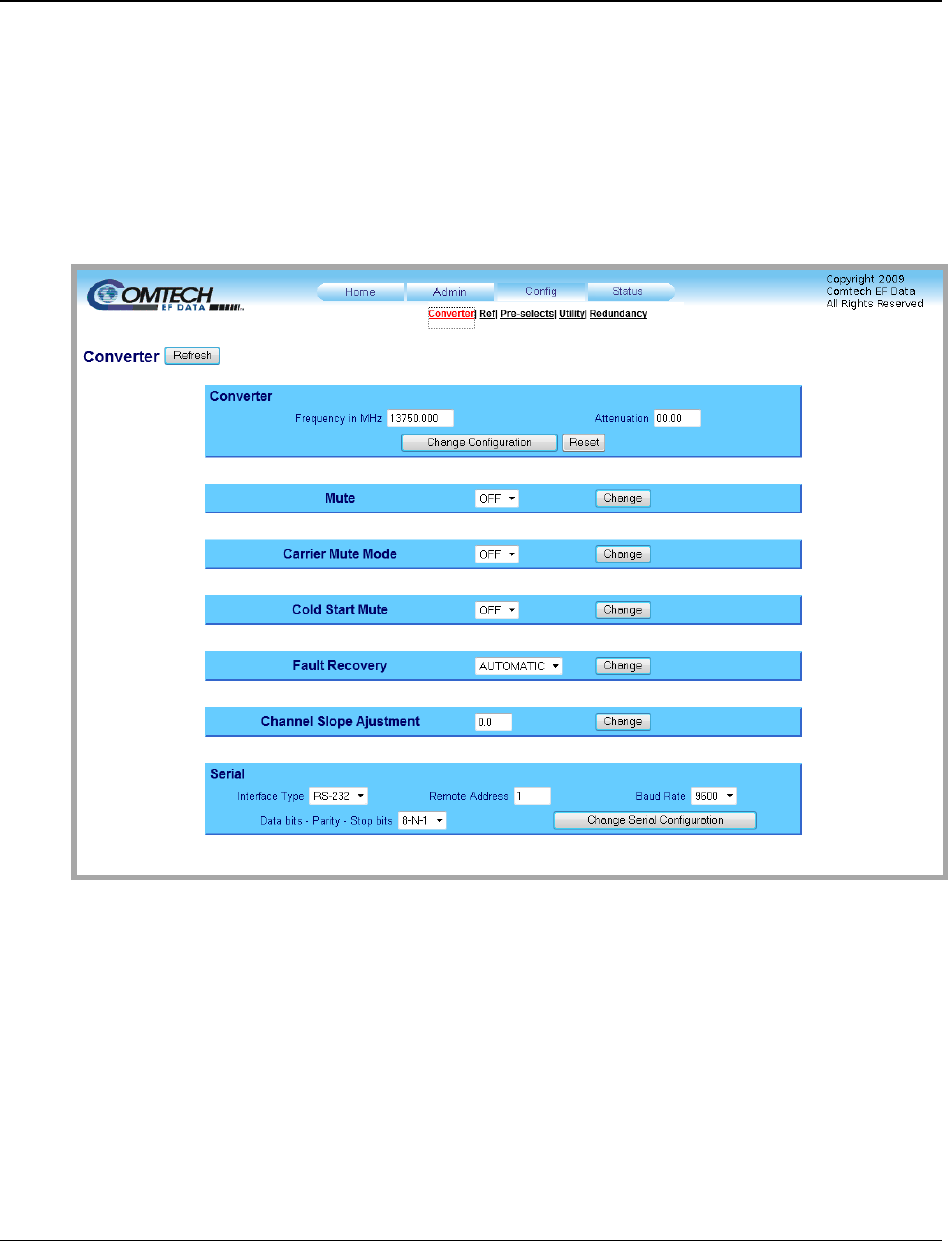

Figure 6-6. Config | Converter page
Click [Refresh] to update the page with its latest operating parameters.
Converter
• Frequency in MHz: Enter an operating RF Frequency; otherwise, this field will display as
N/A.
• Attenuation (dB): Enter a valid attenuation level (00.00 to 20.00 dB) in 0.25 dB steps.
