CDM-840 Remote Router Revision 0

Ethernet Management MN-CDM840

5–38

Once the desired BERT settings have been entered in this section, click [Submit] as needed to

save and execute these changes.

BERT Monitor

This read-only section displays the ongoing BERT. Click [Restart] to restart the BERT Monitor,

or [Update] to refresh a test already in progress.

5.4.4.6.2 Utility | Reboot page

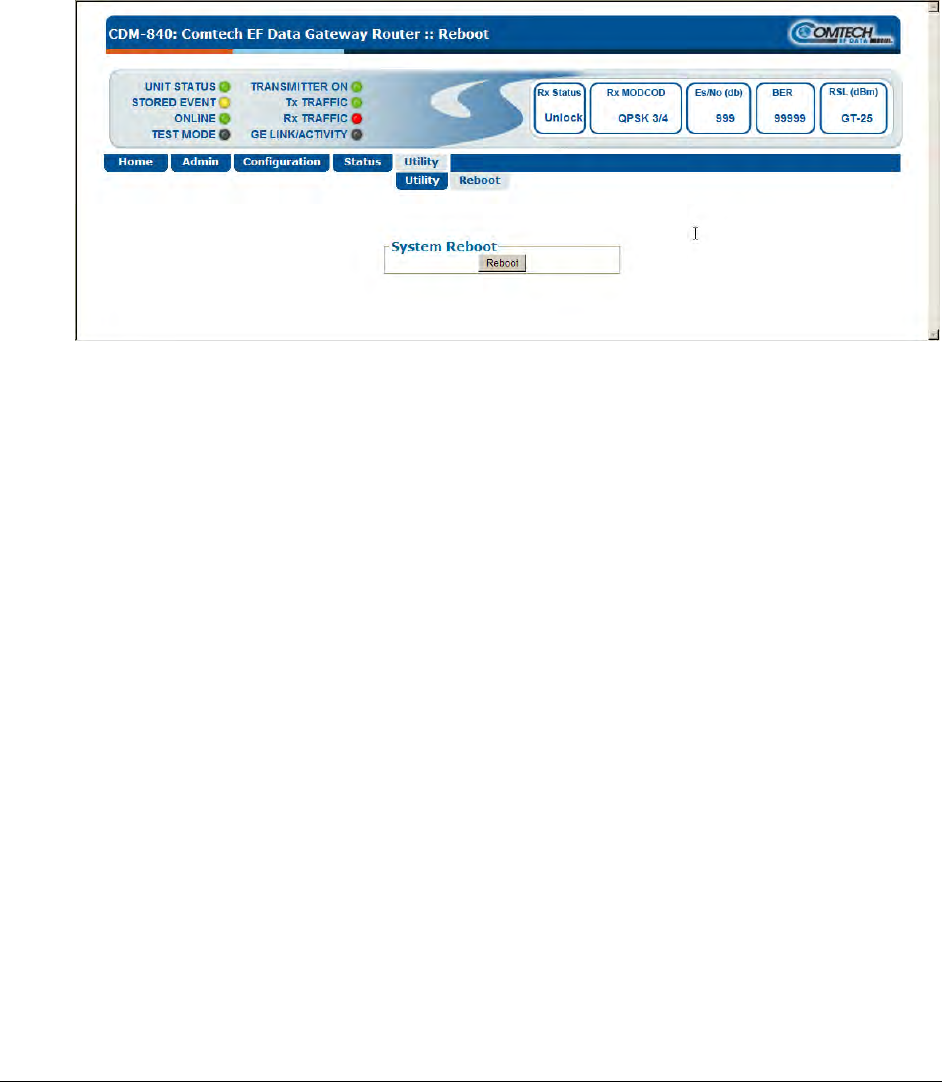

Figure 5-25. Utility | Reboot page

System Reboot

Click [Reboot] to reboot the unit. Once the system reboots, the user will need to log in once more

to resume use of the Web Server Interface.
