CDM-840 Remote Router Revision 0

Rear Panel Connector and Pinouts MN-CDM840

3–4

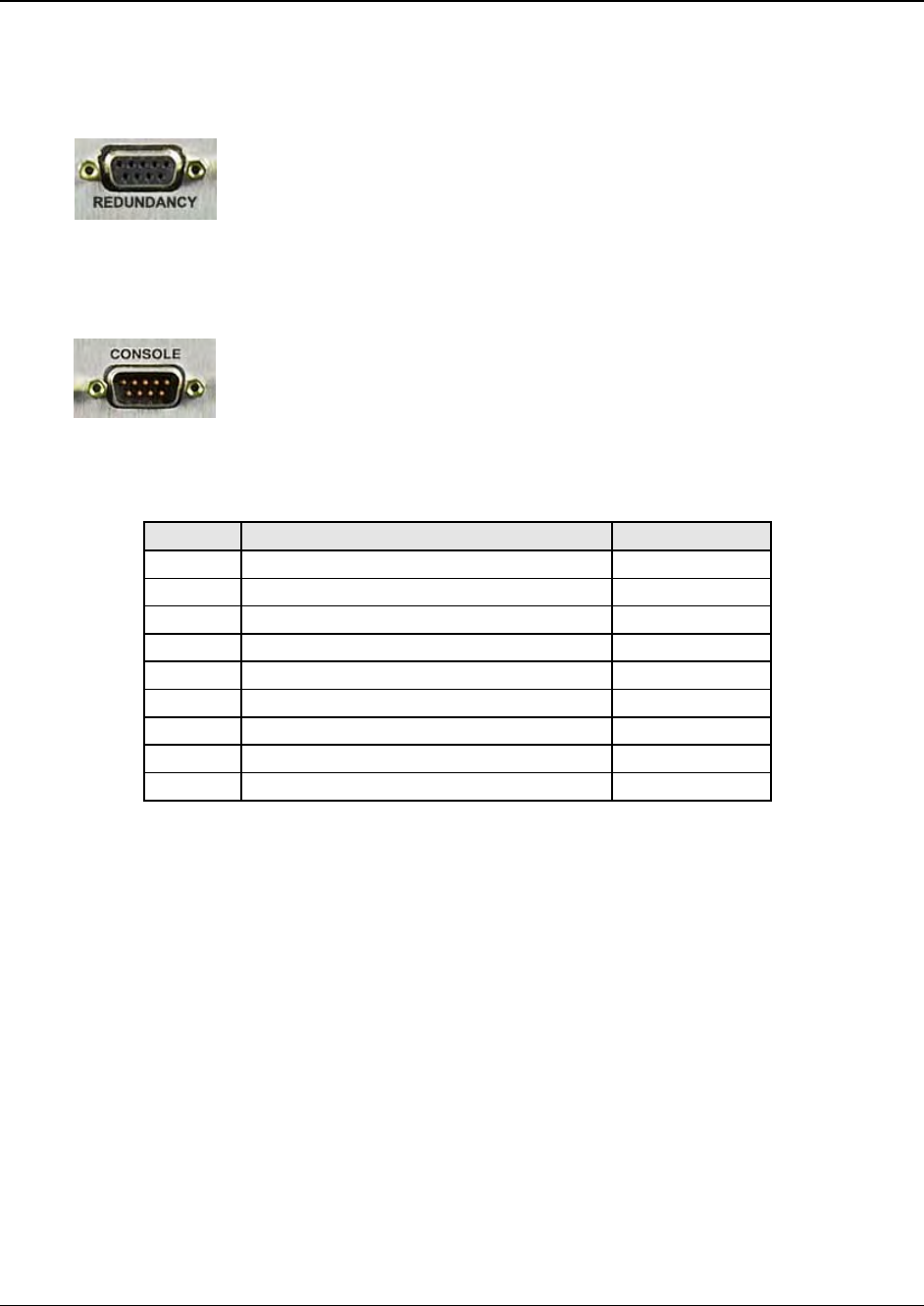

3.4 Utility Connections

3.4.1 (FUTURE) REDUNDANCY Connector, DB-9F

This interface is not operational in the initial product release.

3.4.2 CONSOLE Interface Connector, DB-9M

The Remote Control Interface is a 9-pin Type ‘D’ male connector. It is

intended for connection to an M&C computer or terminal device, and is used

for EIA-232 communications. Refer to Table 3-2 for

pinouts.

Table 3-2. REMOTE CONSOLE Connector Pinouts

Pin # Description Direction

1 Ground –

2 EIA-232 Transmit Data Out

3 EIA-232 Receive Data In

4 Reserved - do not connect to this pin –

5 Ground –

6 Reserved - do not connect to this pin –

7 Reserved - do not connect to this pin –

8 Reserved - do not connect to this pin –

9 Reserved - do not connect to this pin –
