CDM-840 Remote Router Revision 0

Ethernet Management MN-CDM840

5–34

Page with QoS Control Mode = Max/Priority or Min/Max

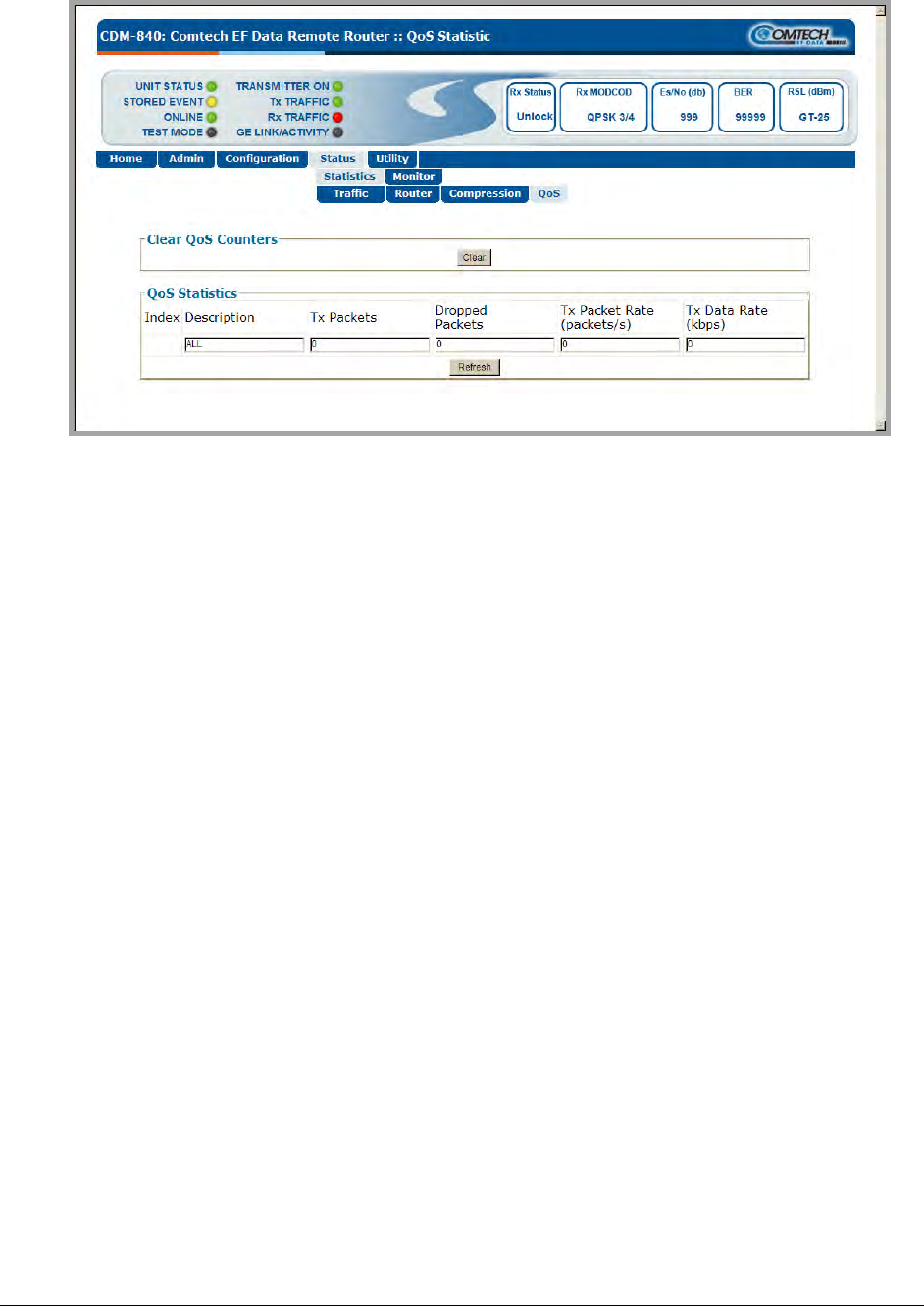

Figure 5-22. Status | Statistics | QoS pages (cont)

For any active configuration, note the following:

Clear QoS Counters

Click [Clear] to clear all router statistics from the buffer.

QoS Statistics

See Section 5.4.4.4.6.2 for explanations of the terms used in this section.

Click [Refresh] to update this section with the latest available statistics.
