Digital Satellite Terminal System Revision 1

Block Up Converter MN/DST.IOM

3–7

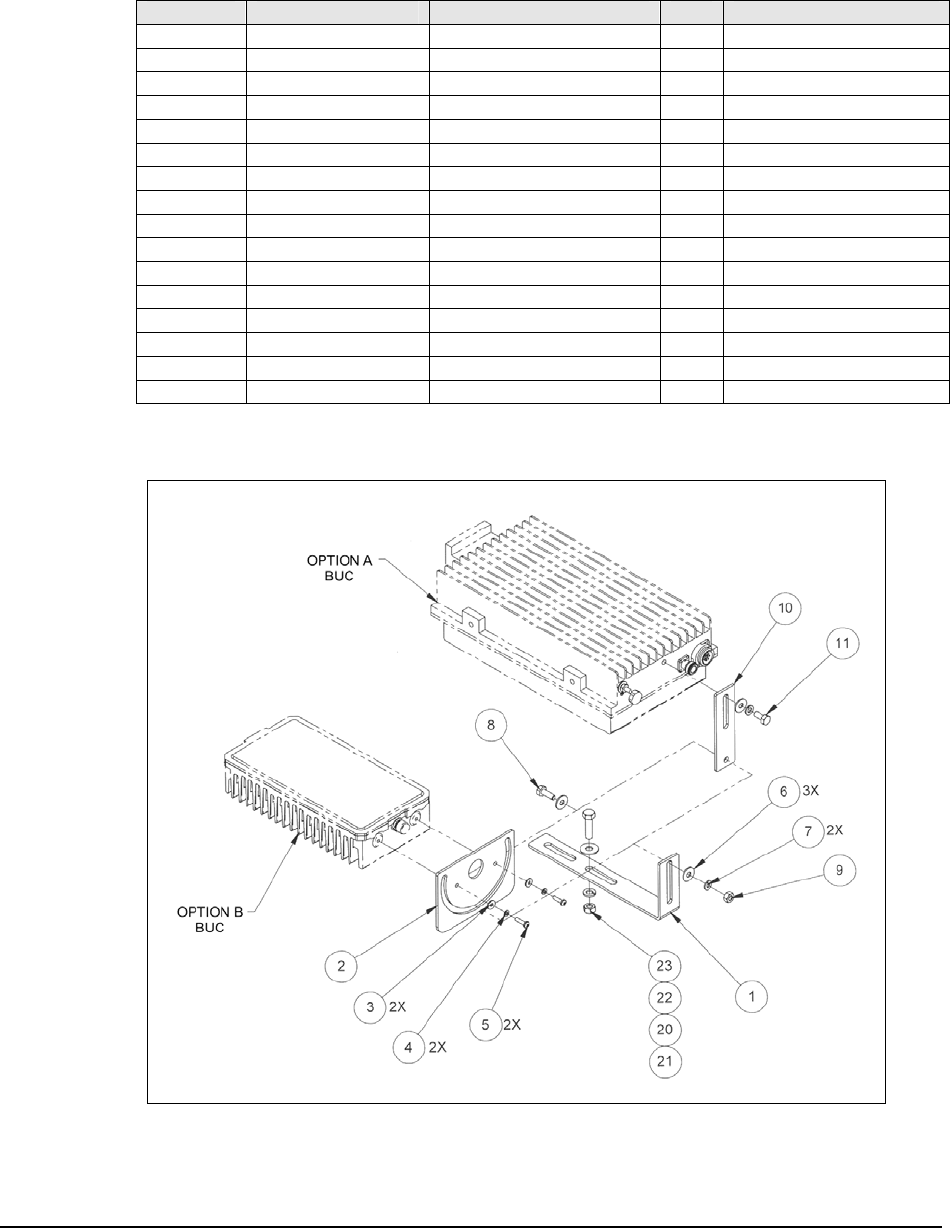

Table 3-5. Optional: C- and Ku-Band Mounting Kit, KT/9928-1

(BUC to Feed Horn)

Item Part No. Nomenclature QTY Remarks **

1 FP/9026-1 Bracket, QP 1

2 FP/BR9927-1 Bracket, Upper 1 Used with Option B BUC

3 HW/M4FLAT Washer, Flat 2 Used with Option B BUC

4 HW/M4LOCK Washer, Lock 4 Used with Option B BUC

5 HW/M4X16PH Screw, Pan Head Phillips 2 Used with Option B BUC

6 HW/1/4-FLAT Washer, Flat 2

7 HW/1/4-SPLIT Washer, Split 2

8 03P1078 Bolt, Hex 1

9 HW/1/4-20HEXNUT Nut, Hex 1

10 FP/BR9929-1 Bracket 1 Used with Option A BUC

11 HW/1/4-20X5/8HEX Screw, Hex 1 Used with Option A BUC

*12 thru 19 Not Used

20 HW/5/16-FLT Washer, Flat 1

21 HW/5/16-18X1.25 Bolt, HEX Head 1

22 HW/5/16-SPLIT Washer, Split 1

23 HW/5/16-18HEXNT Nut, Hex 1

* Not Illustrated.

** Refer to Table 3-3

Figure 3-2. Mounting Kit, KT/9928-1
