DMD2050E Universal Satellite Modem TCP/IP Ethernet Setup
MN-DMD2050E Revision 2 F–6

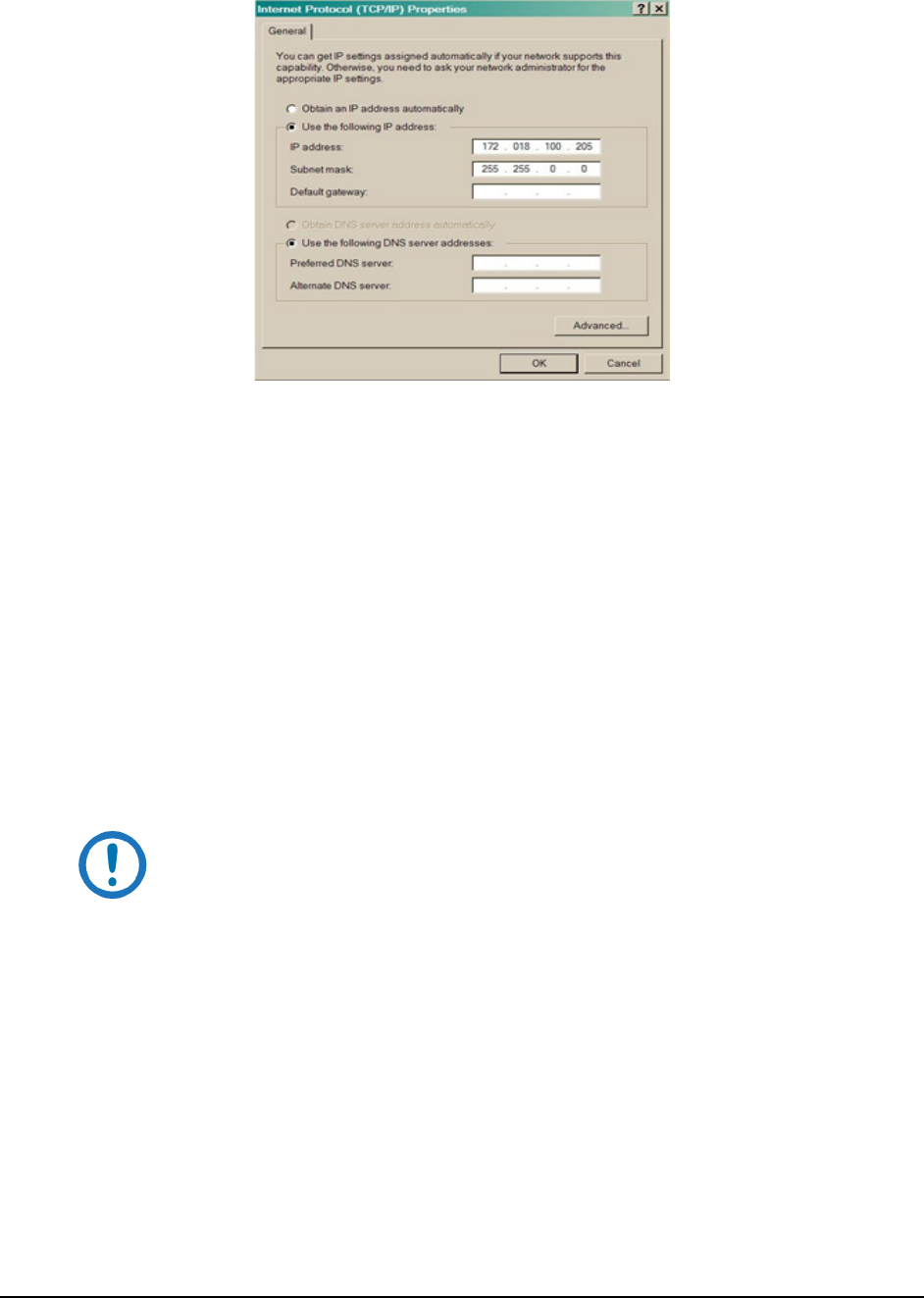

Internet Protocol (TCP/IP) Properties
9. Select “Use the following IP Address”.
10. Enter an IP Address that is different from the equipment IP address by at least 5 digits. The
computer and the equipment cannot use the same address.
11. Enter a Subnet Mask. This must be the same subnet mask that is programmed into the
equipment.
12. Click the OK button to complete the PC Configuration. You may need to restart the computer
for the changes to take effect.
NOTE
To reconnect the computer to a network, Select “Obtain an IP address automatically”.
