Updating Firmware Revision 2
CDM-760 Advanced High-Speed Trunking Modem MN-CDM760
4–11
Programming ModemApp
XXX% Complete
Loading FPGA XX of XX
XXX% Complete
• Once the file transfers, Command-line displays the upload result, similar to:
200 Port command okay
150 Opening data connection for STOR (192.168.1.1,-9944)
226 File received OK – XXXXXXX bytes in XX.XXX sec
001 Flash programming Successful‼
ftp: XXXXXXX bytes sent in XX.XXSeconds XXX.XXXKbytes/sec.
• Type "bye" to terminate the FTP session, and then close the Command-line window.
4. Use one of these methods to verify that the PC-to-Modem FTP file transfer was successful:
• Use the CDM-760 Front Panel – After reboot, confirm that the Modem Firmware
Version that displays on the CDM-760 Front Panel VFD top-level screen matches the
firmware version just loaded.
You may also review the SELECT: Utility → Firmware → Info → Image#1 and Image#2
screens for detailed firmware information.

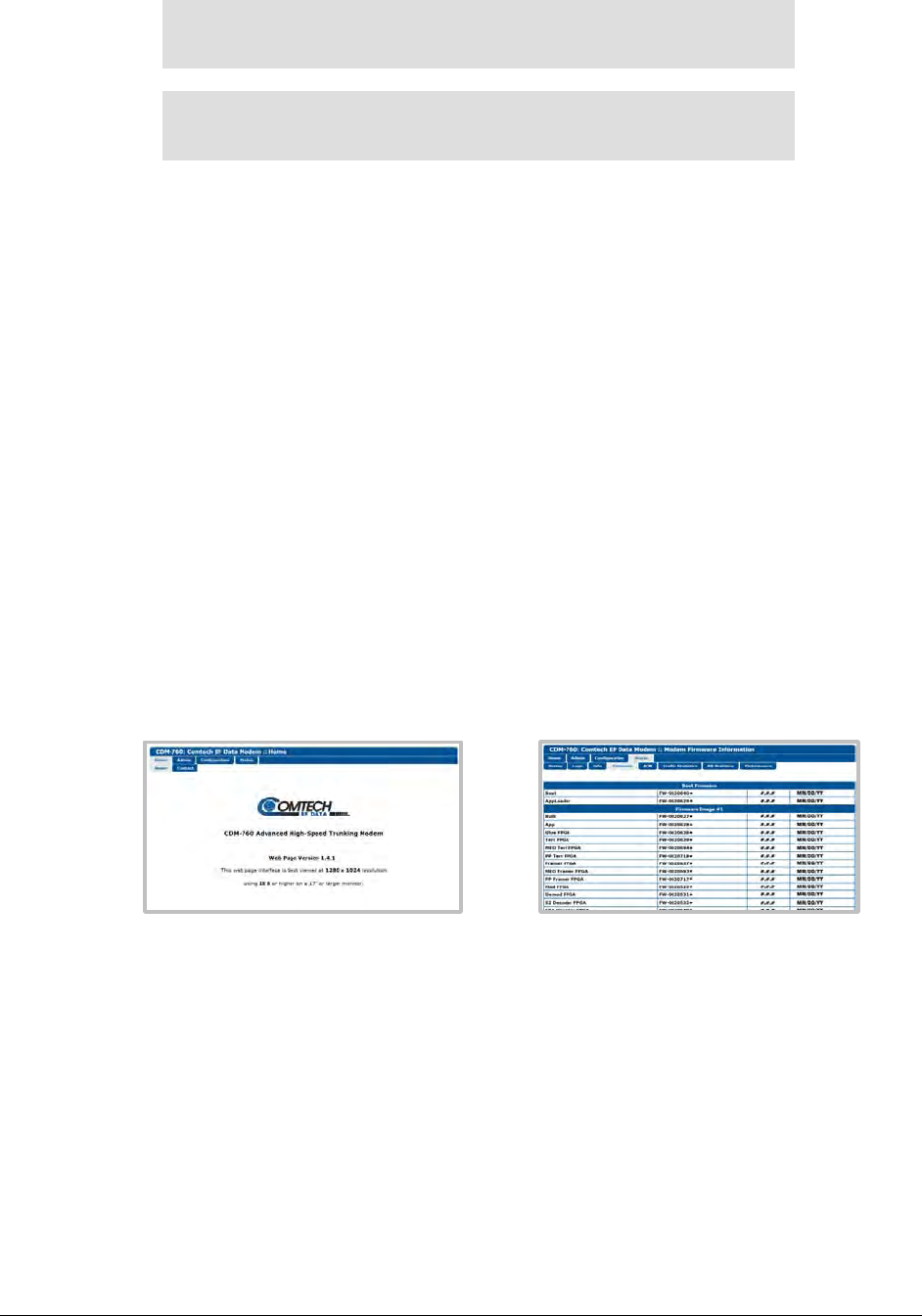

• Use the HTTP Interface – Review the firmware version on the Home page, or the Image
1 and Image 2 folder contents on the Status | Firmware page:
•
Use the Serial Remote Control Interface – Execute one of the following queries:
o Abbreviated – <0/SWR? (displays firmware versions)
o Detailed – <0/FRW?1 (for Image 1) or <0/FRW?2 (for Image 2) (displays complete
firmware load information)
