1–1

Chapter 1. INTRODUCTION

1.1 Overview

Comtech EF Data’s MBT-4000 Multi-Band RF Transceiver, shown in Figure 1-1, is designed to

perform C-, X-, or Ku-Band RF to L-Band down conversion and L-Band to C-, X-, or Ku- or Ka-

Band RF up conversion.

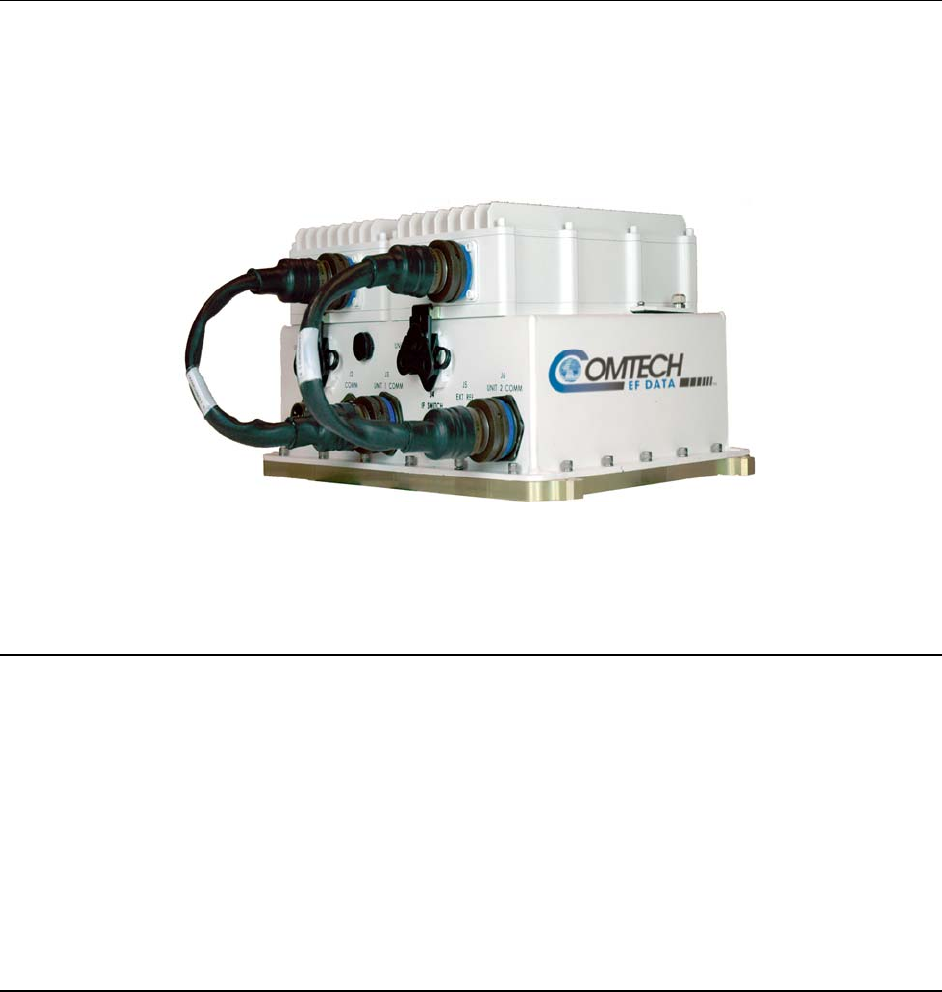

Figure 1-1. Comtech EF Data MBT-4000 Multi-Band RF Transceiver

1.2 Functional Description

The MBT-4000 is designed to perform the following functions:

• C-, X-, or Ku-Band RF to L-Band down conversion

• L-Band to C-, X-, or Ku-Band RF up conversion

• RF Band switching in minimal time without requiring tools

• Easy expansion for providing a redundant system or other frequency bands

• Automatic band identification for the Block Up converter (BUC), Block Down Converter

(BDC), and antenna feed (if the feeds provide an identifying connector)
