Comtech EF Data Application Note

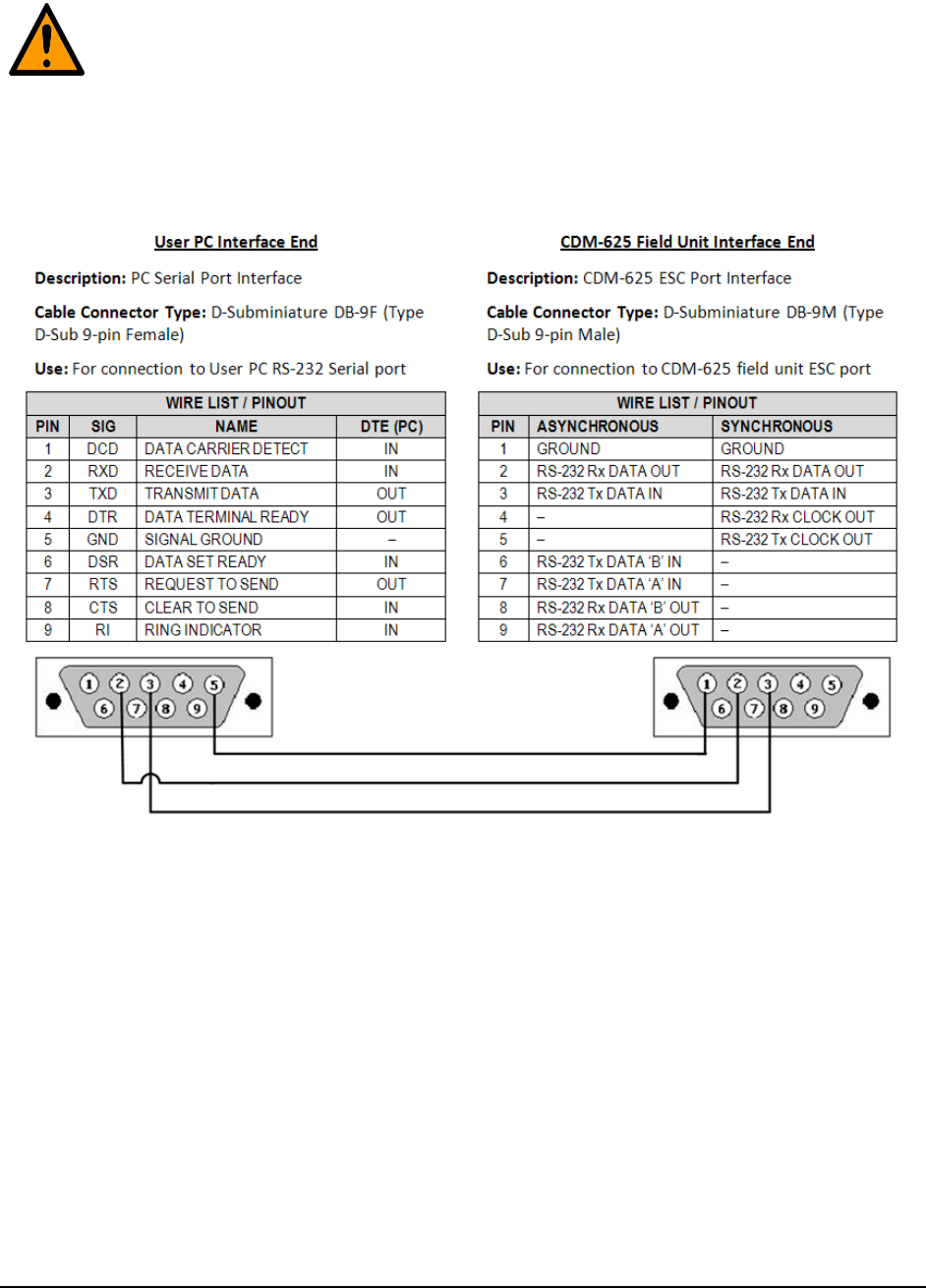

V. Serial A d a p te r Cable Fabrication Specifications Reference

CAUTION: To ensure proper operation, fabrication of this Serial Adapter Cable requires that :

• The connectors must be wired using the pinout tables and diagram provided here.

• The Type 'D' connectors mus t have back-shells with continuous metallic shielding.

• The Type ‘D’ cabling must have a continuous outer shield (either foil or braid, or both).

The shield must be bonded to the connector back-shells.
