CRS-300 1:10 Redundancy Switch Revision 16

Front Panel Operation MN/CRS300.IOM

7–3

7.1.2 Front Panel LED Indicators

7.1.2.1 Unit Status LED Indicators

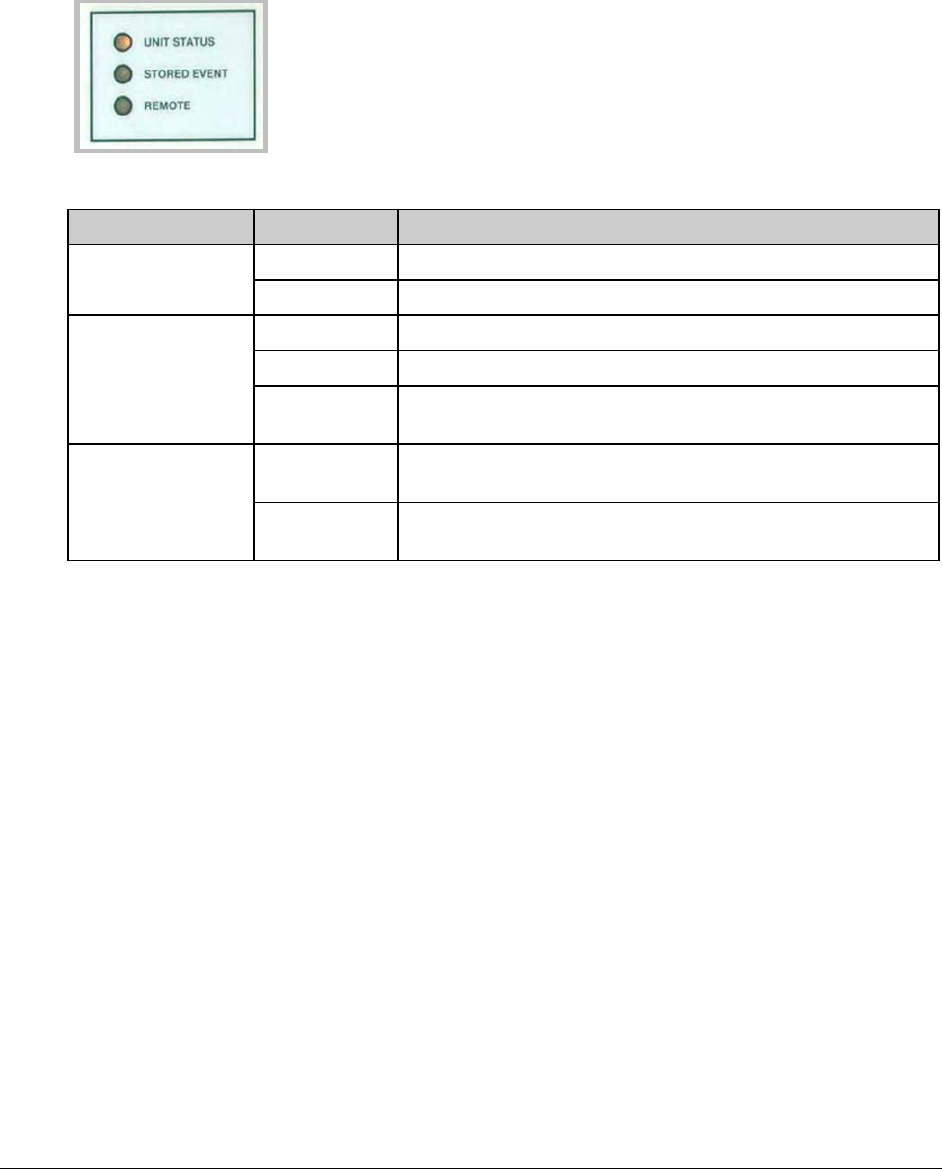

The behavior of the three front panel LEDs adjacent to the keypad, which

indicate operational status of the CRS-300 switch unit, are described below

in Table 7-1:

Table 7-1. Unit Status LED Indicators

LED Color Condition

UNIT STATUS

Green

Normal operation (no Switch Faults)

Red

Switch Fault, e.g., PSU fault or COMMS failure

STORED EVENT

Off

No Stored Events

Orange

Switch has Stored Events

Orange

(Flashing)

CAUTION: Switch is in Manual mode

REMOTE

Off

Switch in Local Mode – remote monitoring is possible;

remote configuration control is not allowed

Orange

Switch in Remote Mode – configuration changes are

disabled via the front panel keypad
